Max web width | 320mm |
Min slitting width | 20mm |
Max unwind diameter | 500mm |
Cutting precision | 0.2mm |
Max rewinding diameter(turret) | 300mm |
Power voltage | AC220V |
Overall dimensions（L*W*H) | 1200*1200*1200mm |
Total power | 1.5kw |
Machine weight | 450kg |
Diameter of unwinding paper core | 1,2,3inch |
2.Product Description:
þHave EPC web guide.
þHave meter counting.
þFrequency inverter control system.
þUse 3 inch air shaft(Φ76mm) for unwind (also can make according to your request).
þUse turrent rewind, 1 pcs 3 inch air shaft and 1 pcs 1.5 inch air shaft.
þWith touch screen control panel.
þWith auto taper tension control.
þHave one wasting fan.
þHave 8 sets knife.
3.Machine detailed pictures:
 |
|

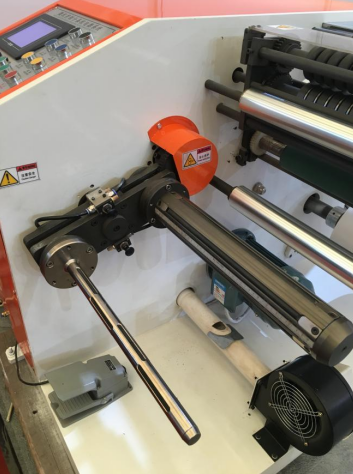

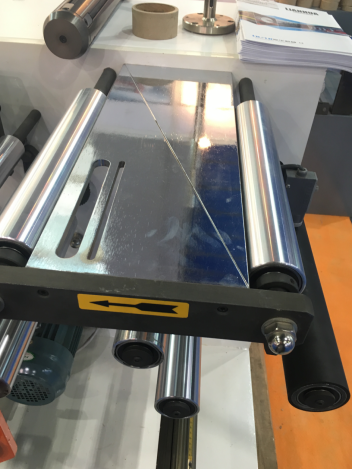

Turret rewind | Splice table |
