Main Technical Parameters:
Mechanical speed | 500m/min |
Max unwinding diameter | 1000mm |
Cutting width | 30-1300mm |
Max rewind diameter | 600mm |
Overall dimensions(L*W*H) | 2500*3500*1850mm |
Machine weight | 4000kg |
Characteristic:
þ3 inch and 6 inch shaftless air pressure cone top unwinding
þLaser paper core positioning technology
þError correction method EPC/LPC（web guide)
þMain control system(PLC+HMI)
þSubsection tension control technology(auto taper control)
þDrive mode(Asynchronous servo motor control)
þFriction shaft(3inch)
þCutting methods(razor cut or round cut)
Machine Detailed Pictures:
|
|

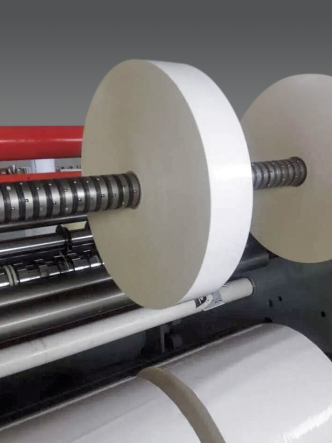

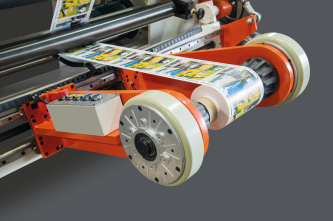

Friction rewind | unwind |
|
|

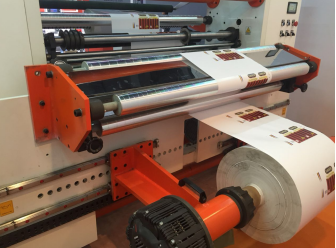

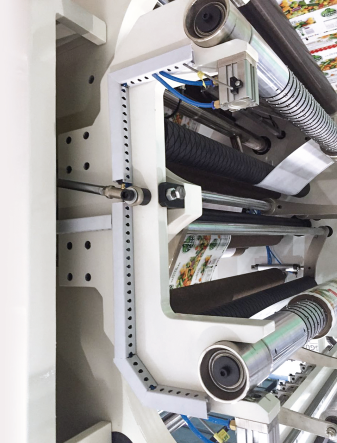

Unload arm | Rewind roll |
|
|

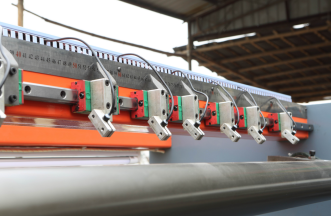

Splice table | Laser position |
