Main Technical Parameters:
Max web width | 865mm |
Max unwind diameter | 1100mm |
Max rewind diameter | 200mm |
Slitting material | 30-100gsm thermal paper |
Slitting width | ≥30mm |
Unwind shaft | 3inch(can make as your request) |
Rewind shaft | 0.5inch,1inch(can make as your request) or coreless 8mm |
Power supply | AC380V ±10% 50HZ |
Slitting precision | ±0.2mm |
Total power | 4kw |
Cutting speed | 5-150m/min |
Overall dimensions(L*W*H) | 2.05*1.9*2.05m |
2.Description:
Unwind use hydraulic auto loading system
Slitting width: ≧30mm
Rewinding shaft inner diameter: can make according to your request
And will offer you total 4 pcs rewinding shaft
Max. Rewinding diameter: Φ150mm
Slitting knife: 16 sets
PLC language use both English and Chinese
Machine voltage: 380V, 3 phase
3.Option: ①web guide ② packaging machine ③ core loading machine
4.Machine Detailed Pictures:
 |
|

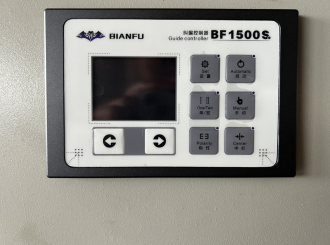

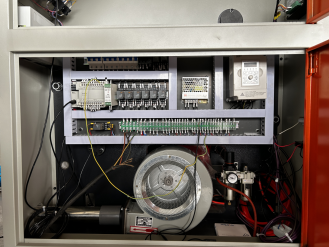

Web guide controller | Electric cabinet |
|
|
Magnetic powder | Auto core loading set |
|
|

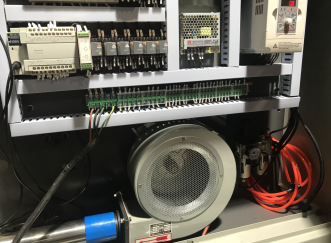

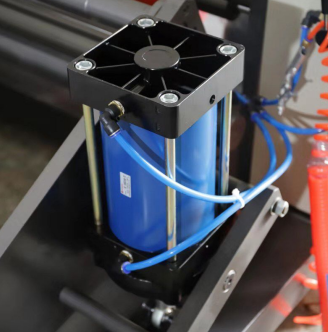

blower | Air cylinder |
|
|

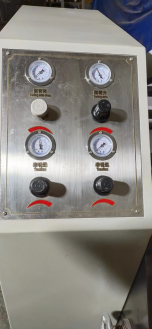

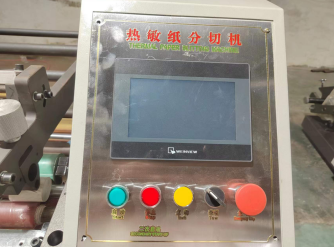

Pressure gauge | Touch screen |
