Main Technical Parameters:
Cut speed | 200/300 time/min |
Max unwinding diameter | 500mm |
| Max web width | 320/420/520mm |
Max die-cut width | 320/420/520mm |
Max die-cut Length | 290mm |
Position accuracy | ±0.1mm |
Total power | 3.5kw |
Power voltage | 380V 50hz 3phase 4wire |
Machine weight | About 2200kg |
Overall dimension | 3.2(L)×1.3(W)×1.6(H)(m) |
Description:
þSeperate unwind frame
þSeperate rewinding frame
þServo Motors are equipped for accurate material transmission.
þTouch Screen for convenient operation
þFrequency Converter used for speed regulation
þ3 pcs of Photocells are used for web guiding
þCold laminating system
þLamination shaft, sheeter device, rewinder are equipped for multi purpose.
3.Optional Parts:（you can add this device as an optional part）
Punching device;
hot-stamping device
4.Machine Detailed Pictures:
 |
|

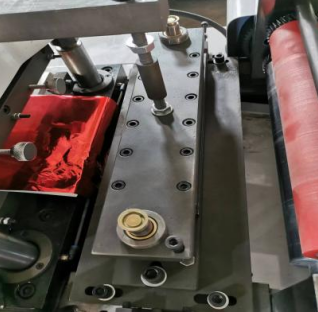

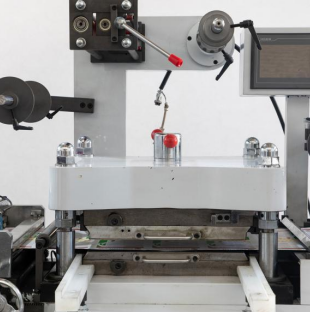

Die cutter | Punch device |
|
|

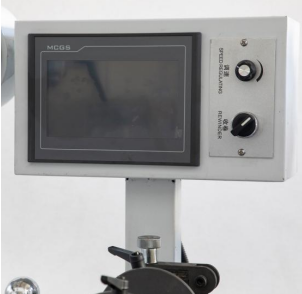

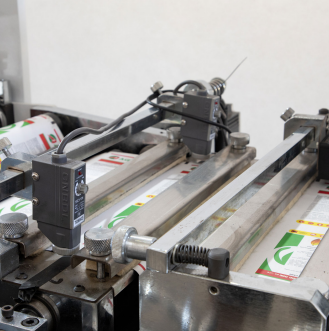

Touch screen | Web guide |
|
|

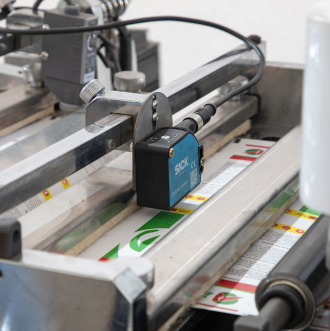

Color sensor | Sheet table |
|
|

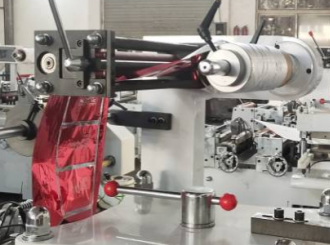

Hot stamping | Cold laminate |
