Main technical parameters:
Printing speed | 60m/min |
Printing color number | 6colors |
Max width of paper | 650mm |
Max print width | 650mm |
Max unwind diameter | 1000mm |
Max rewind diameter | 1000mm |
Print length | 175-325mm |
Precision of overprint | ±0.1mm |
Overall dimensions | 4.8(L)*1.6(W)*2.1(H)m |
weight | About3000kg |
2.Description:
þAutomatic magnetic powder brake controller for unwinding & rewinding
þTension controller for unwinding
þTension controller for rewinding
þPrinting unit: 360°Plate-adjustment
þBoth IR dryer and UV dryer for each printing unit, 6 color
þWeb guide system in the machine
þUnwind and rewind separate, with auto loading/unloading system
þThe ink rollers will be separated from the printing roller, and keep running, when machine stopped.
þFrequency inverter for speed controlling
þ1 set plate cylinder and 1 set anilox roller
þFeed paper form roll material, print, coating, dry automatically and rewinding completed in one time.
3.Optional parts:
þAnilox cylinder specification made by request;
þPlate cylinder specification made by request;
þDouble sides printing of material-reversing device;
þRotary die cutting set in the machine
þSlitting set
þSheet conveyor
þCold laminating
þCold stamping
þVideo inspection system
þCorona treatment device
þCoating
4.Machine Detailed Pictures:
 |
|

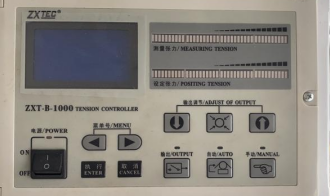

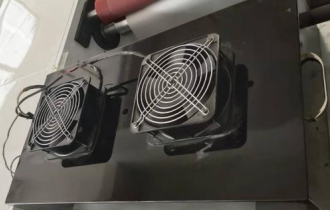

IR dryer | Tension control |
|
|
Corona treatment | Print adjust wheel |
|
|
Video monitor | |
|
|
unwind | Web guide |
|
|
Gear motor | Ink motor |
