Main Technical Parameters:
Max.web width | 320/420/520mm |
Slitting machine | 150m/min |
Die-cutting length | 178mm-476mm |
Max. unwinding diameter | 500mm |
Max. rewinding diameter | 500mm |
Power voltage | 380V, 3 phase, 4 wire, 50HZ |
Overall dimensions | 3.3*1.30*1.65m(L*W*H) |
Machine weight | 2000/2100/2200kg |
Description:
þOne rotary die cut station.
þWith 1 pcs 3” inch unwinding air shaft.
þ2 pcs 1.5” inch air shaft for turret rewind,1pcs 3'' inch air shaft for blow rewind.
þWith meter and number counting.
þEPC web guide system.
þAuto Tension control system.
þControl panel.
þTransmission mode timing belt.
þWith 8 sets round knife on slitter station.
þThe unwinding and rewind use magnetic powder brake and clutch.
þHorizontal side push type magnetic cylinder structure.

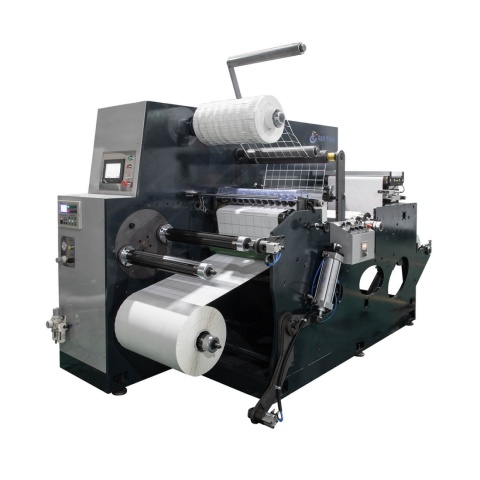

Machine Detailed Pictures：
