Slitter sample：

Descriptions

Parameters

Max web width

2500mm

Max rewinding diameter

1800mm(customize)

Max. unwinding diameter

1800mm(customize)

Slitting width

50mm-2500mm

Deviation correction total stroke

150mm

Cutting precision

±0.15mm

Paper thickness

45-450gsm

Slitting speed

20-500m/min

Total power

55 KW

Power Supplier

AC380V, 3 phase

Overall dimensions(L*W*H)

7500mm*3800mm*2200mm

Machine weight

22000kg

Shaftless unwind(hydralic lifting)

          air brake

                          Web guide system

Speed display

PLC touch screen

Operate penal

Round Slitter knifes

Slitter station

Rewind roll

Rewind part

Waste discharge

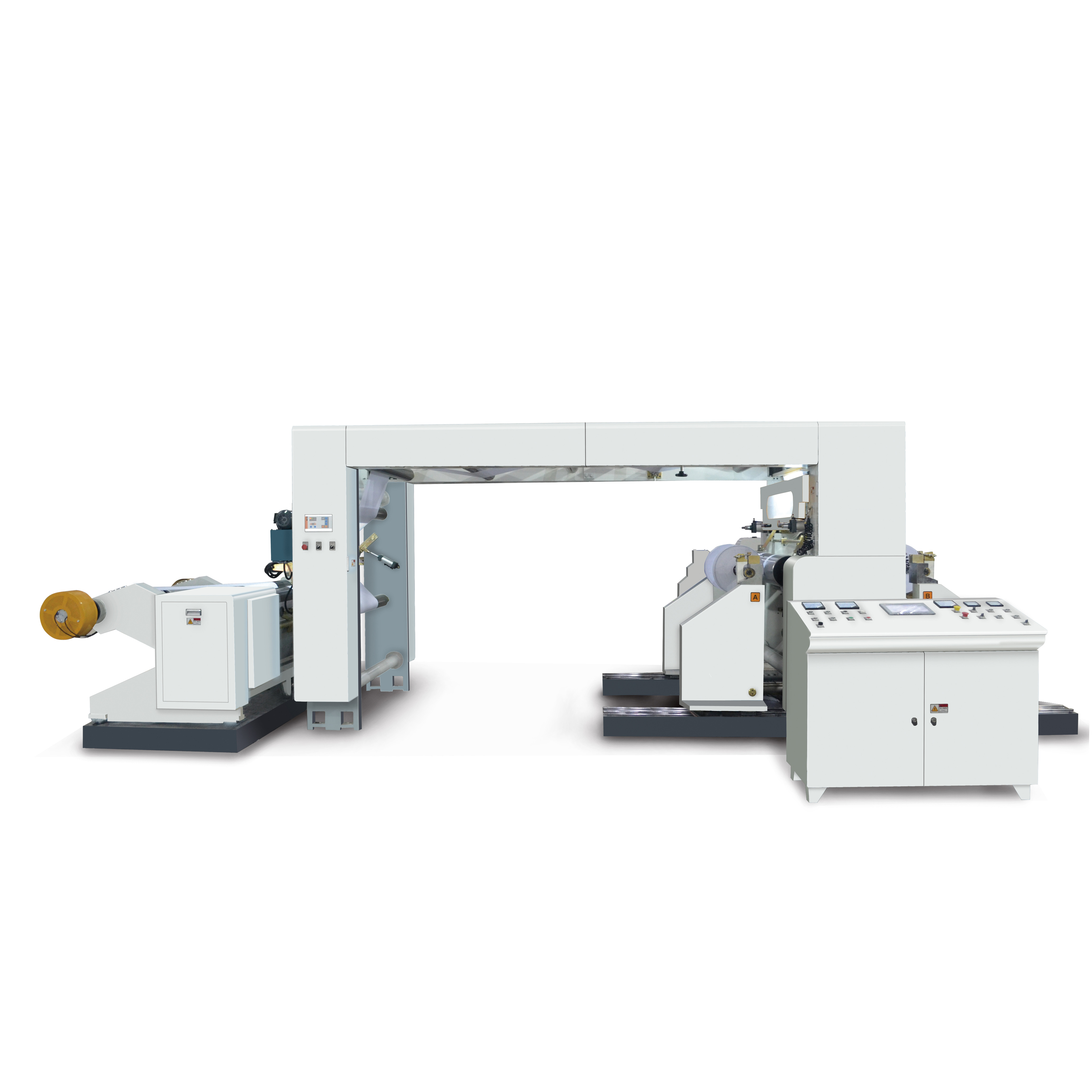

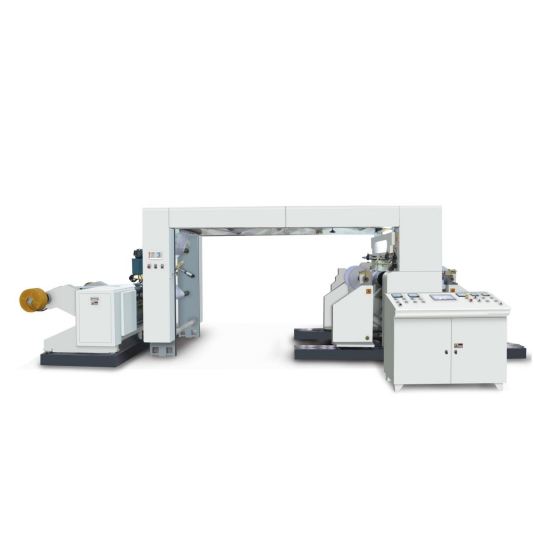

Whole machine overall
