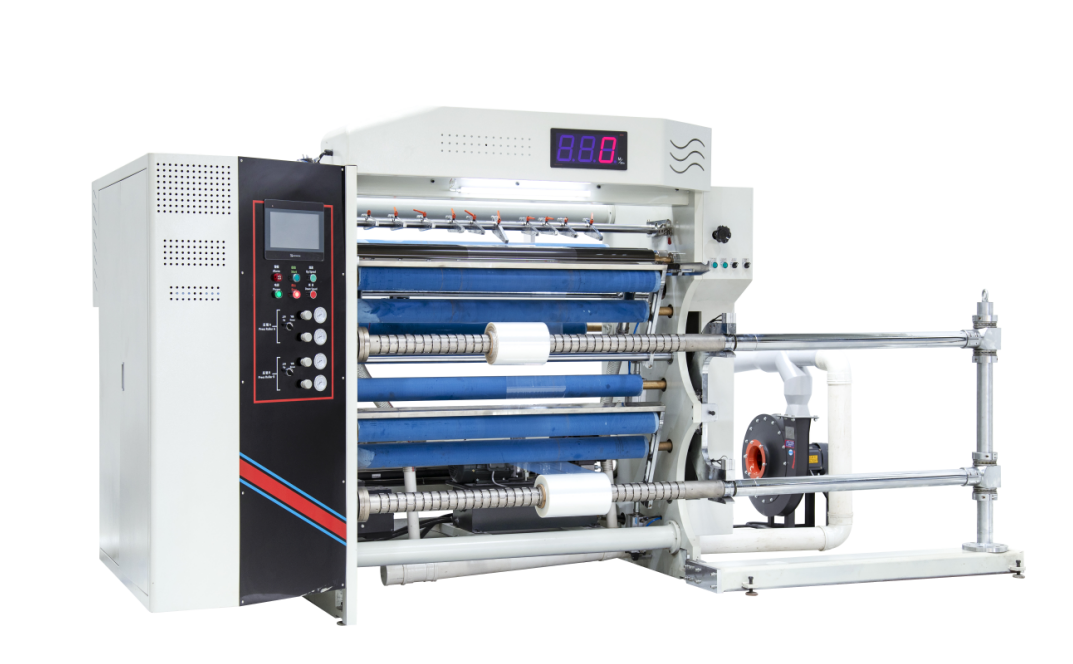

HJFQ-1600C High Speed Slitting Rewinding Machine
| ||
Slitting sample： | ||
|
|
|
Parameters: | |
Descriptions | Parameters |
Max web width | 1600mm |
Max rewinding diameter | 600mm |
Max. unwinding diameter | 800mm |
Min width | 30mm |
Power Supplier | AC380V, 3 phase |
Cutting speed | 10-350m/min |
Overall dimensions(L*W*H) | 2.3*2.25*1.6m |
Machine weight | 3100kg |
Remark: Pls inform us what material you will slitting in advance(papers need use round knives,films need use straight knives). | |
Parameters: | |
Descriptions | Parameters |
Max web width | 1600mm |
Max rewinding diameter | 600mm |
Max. unwinding diameter | 800mm |
Min width | 30mm |
Power Supplier | AC380V, 3 phase |
Cutting speed | 10-350m/min |
Overall dimensions(L*W*H) | 2.3*2.25*1.6m |
Machine weight | 3100kg |
Remark: Pls inform us what material you will slitting in advance(papers need use round knives,films need use straight knives). | |
