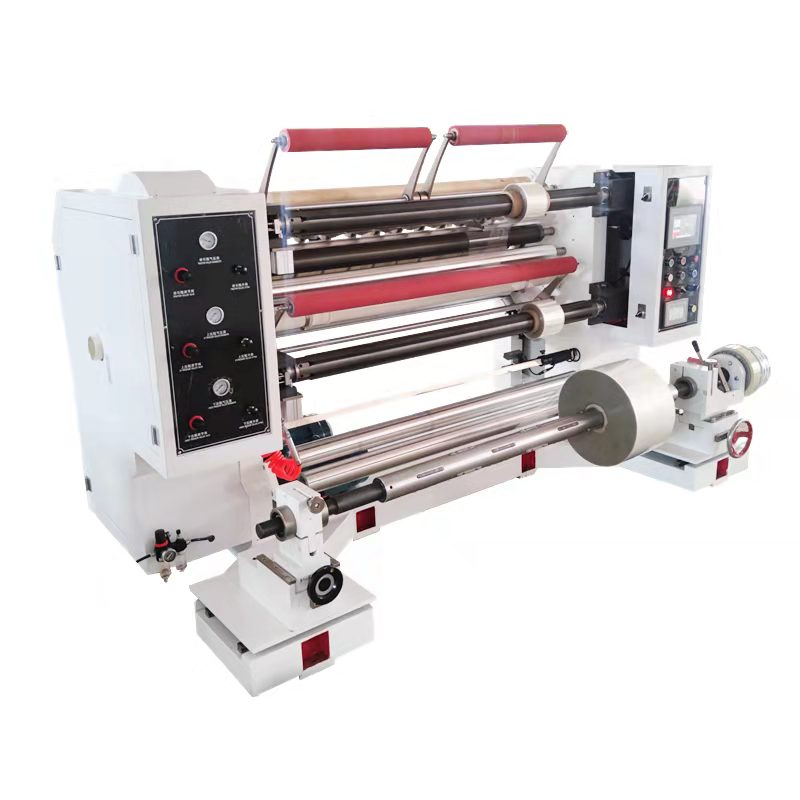

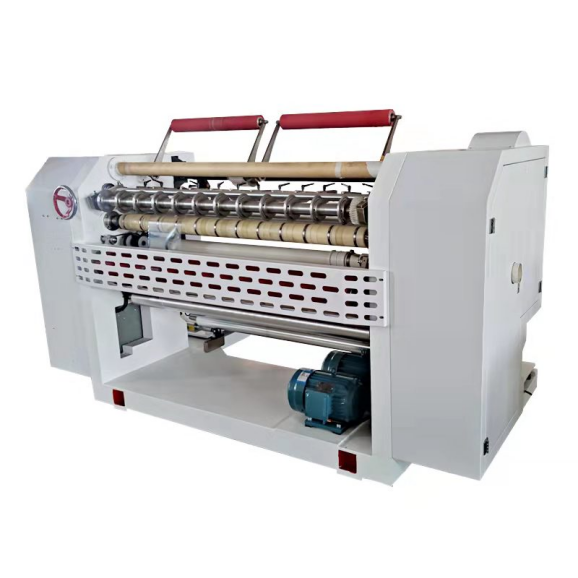

slitter sample：

Descriptions

Parameters

Max web width

1300mm

Max rewinding diameter

450mm

Max. unwinding diameter

600mm

Min slitting width

25mm

Cutting precision

0.2mm

Mechanical speed

10-200m/min

Overall Dimension

1400*2300*1400mm

Machine weight

1200kg

Machine power

5kw

                          unwind

                      Web guide system

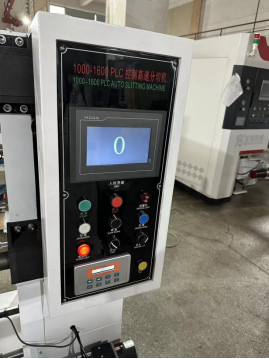

       Touch screen+buttons

          PLC control

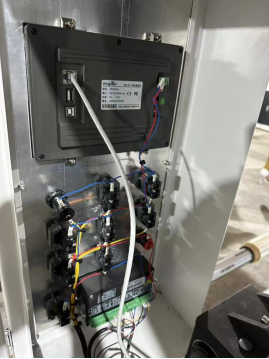

        Blower+electric cabinet

      Pressure control button

        Razor Slitter knifes

      Rewind tension sensors

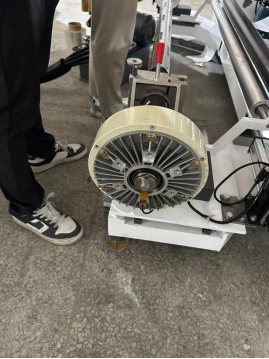

   Rewind magnetic powder

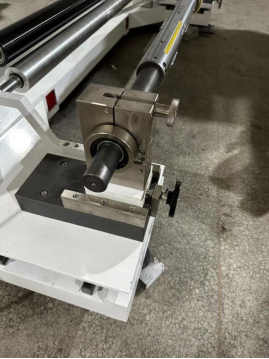

     3inch rewind air shaft

        Traction roller

         Total air source
