Slitting sample：

Descriptions

Parameters

Parameters

Max web width

1100mm

1800mm

Max rewinding diameter

600mm

600mm

Max. unwinding diameter

1000mm

1000mm

Min slitting width

25mm

25mm

Power Supplier

AC380V, 3 phase

AC380V, 3 phase

Cutting precision

0.2mm

0.2mm

Cutting speed

10-400m/min

10-350m/min

Overall dimensions(L*W*H)

2.5m*3.5m*1.85m

2.5m*4.5m*1.85m

Machine weight

About 4000kg

About 4100kg

Total power

12kw

13kw

Unwinding part:

Use shaftless, air brake and hydraulic

loading,mechanical shaft design will not damage the paper tube.

Splicing table:

Friendly operation and increase producivity.

Meter counter:

Record meters directly into the servo program.

Rubber covered roller:

The material fits better when rolled up.

Slitting unit:

circle knife and straight knife are all in this machine,add grooved roller and Round knife lower seat shaft,no need change shafts.

Friction shaft:

1. Separation tension adjustment

2.Achieve the prefect fixing for different thickness

3. Double  beads  type   friction   shaft,with high precision.

Web guide:

Using ultrasonic inspection, it is more sensitive. If there is a deviation in paper feeding, the machine  will make adjustments.

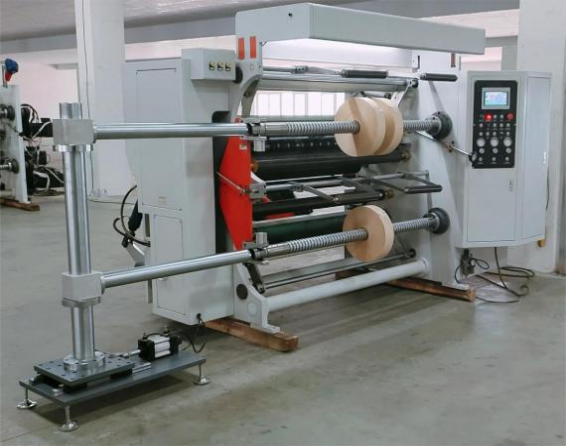

unloading frame:

Save time for changing materials and improve work efficiency.

Grooved roller:

1.The material is cut flat.

2.Adjusting the knife is more convenient.
