1.Main Technical Parameters:
| Reference weight of cutting paper | 50-500g/m2 |
Max.Diameter of paper | 1600mm(65〃) |
Max.Width of paper | 1400/1700/1900mm |
Cutting length | 400-1600mm |
Max cutting speed | 300m/min |
Atmospheric pressure | 0.8MPa |
Power supply | AC380V 3 phase 4 wire 50HZ |
Overall dimensions（L*W*H) | 9m×3.9m×2.35m |
weight | 9000kg |
2.Description:
1.High-precision single knife cutting machine
2.Prismatic adjustment system for paper
3.Equipment of Electro static elimination
4.Middle slitting and waste collection system
5.Automatic counting and label inserting equipment
6.Paper transporting equipment
7.Automatic paper trimming and collecting machine
8.Driving motor system
9.Electrical controlling system
10.Accessory by machine
11.Single arm oil pressure shaftless paper rack
12.Automatic directing and paper tension controller
13.Equipment of automatic vacuum
14.Operation system: LCD panel by operator
15.Main drive system: AC servo motor
3.Machine Detailed Pictures：
 |
|

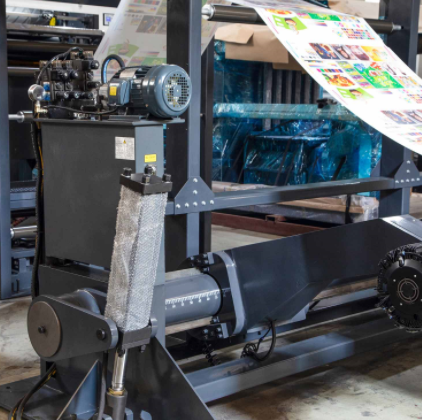

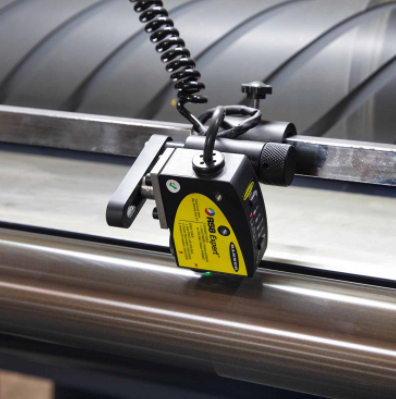

Color code | Hydraulic feeding |
|
|

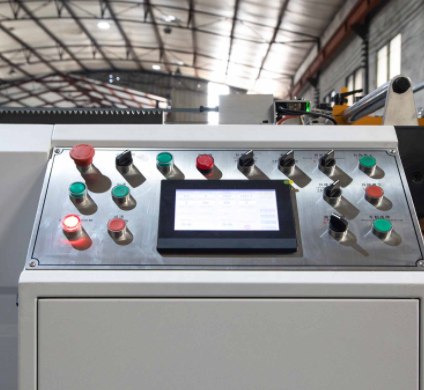

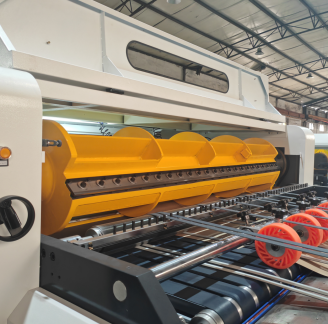

Cross cutting hob | Mian control panel |
|
|

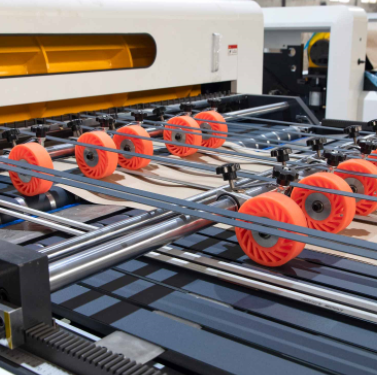

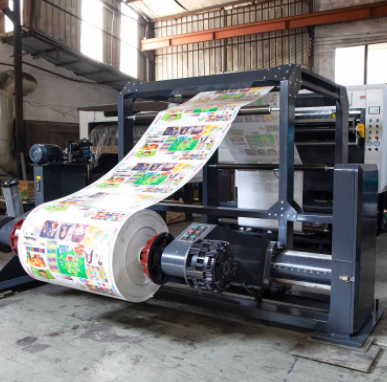

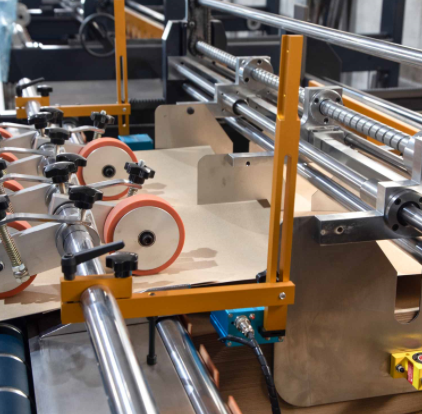

Conveyor+pressure wheel | unwinding |
|
|

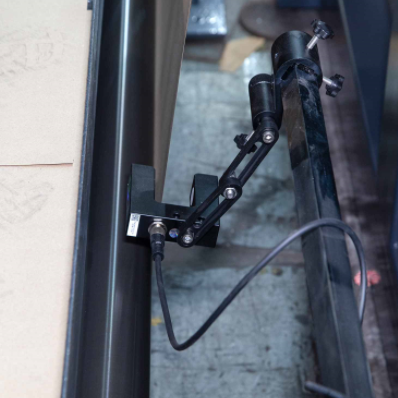

Delivery desk | web guide |
