Machine Technical Parameters:
Max width of raw material | 1600mm |
Max diameter of raw material | 1400mm |
Cutting speed | 300m/min |
Max rewinding diameter | 600mm |
Min cutting width | Round knife(25mm) |
Total power | 23kw |
Machine weight | 3800kg |
Dimensions | 5800*3000*1700mm |
Description：
1, material type: PET, BOPP, PE, self-adhesive, paper, aluminum foil, printing composite and other roll materials;
2, material thickness: 0.012-0.1mm (film)
3. Maximum diameter of raw material: 1400mm
4, raw material core: 3# paper tube;
5, the maximum width of raw materials: 1600mm;
6, the minimum width of raw materials: 200mm;
7, roll surface width: 1650mm;
8, cutting width: 25-1600mm;
9, coil core: 3# paper tube;
10. Maximum diameter of winding: 600mm;
11. Total stroke of correction: 150mm;
12, correction accuracy: ±0.15mm
13, maximum speed: 300 meters/min;
14, cutting speed: 10-- 300 meters/min;
15. Total power: 23KW;
16, total weight: about 3800KG;
17, dimensions: length 5800, width 3000, height 1700mm;

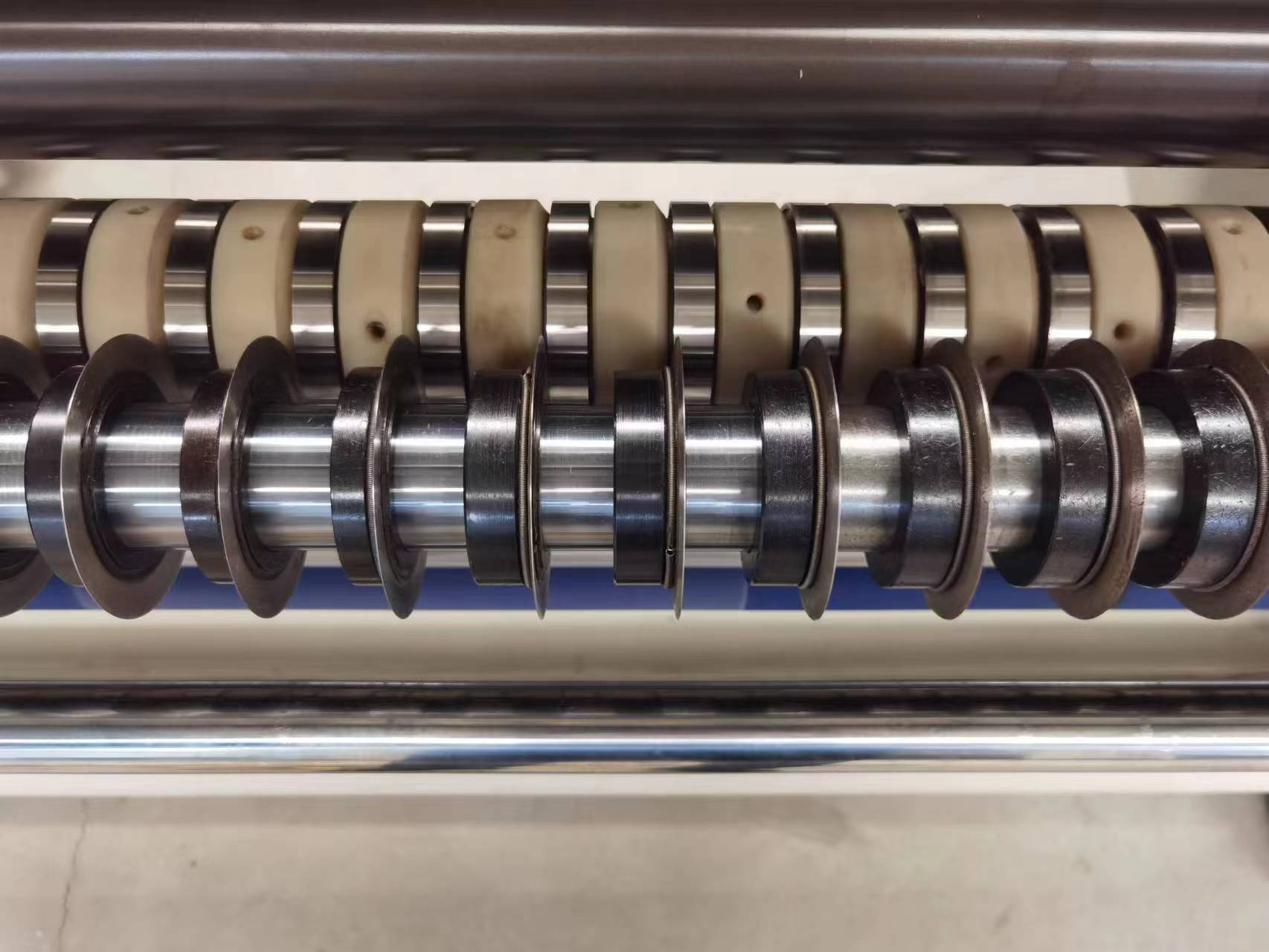

18. Cutting tool: 10 sets of round knife
19, receiving shaft: with air expansion shaft 2, recycling.
20. The whole equipment is equipped with Φ90 aluminum roller.

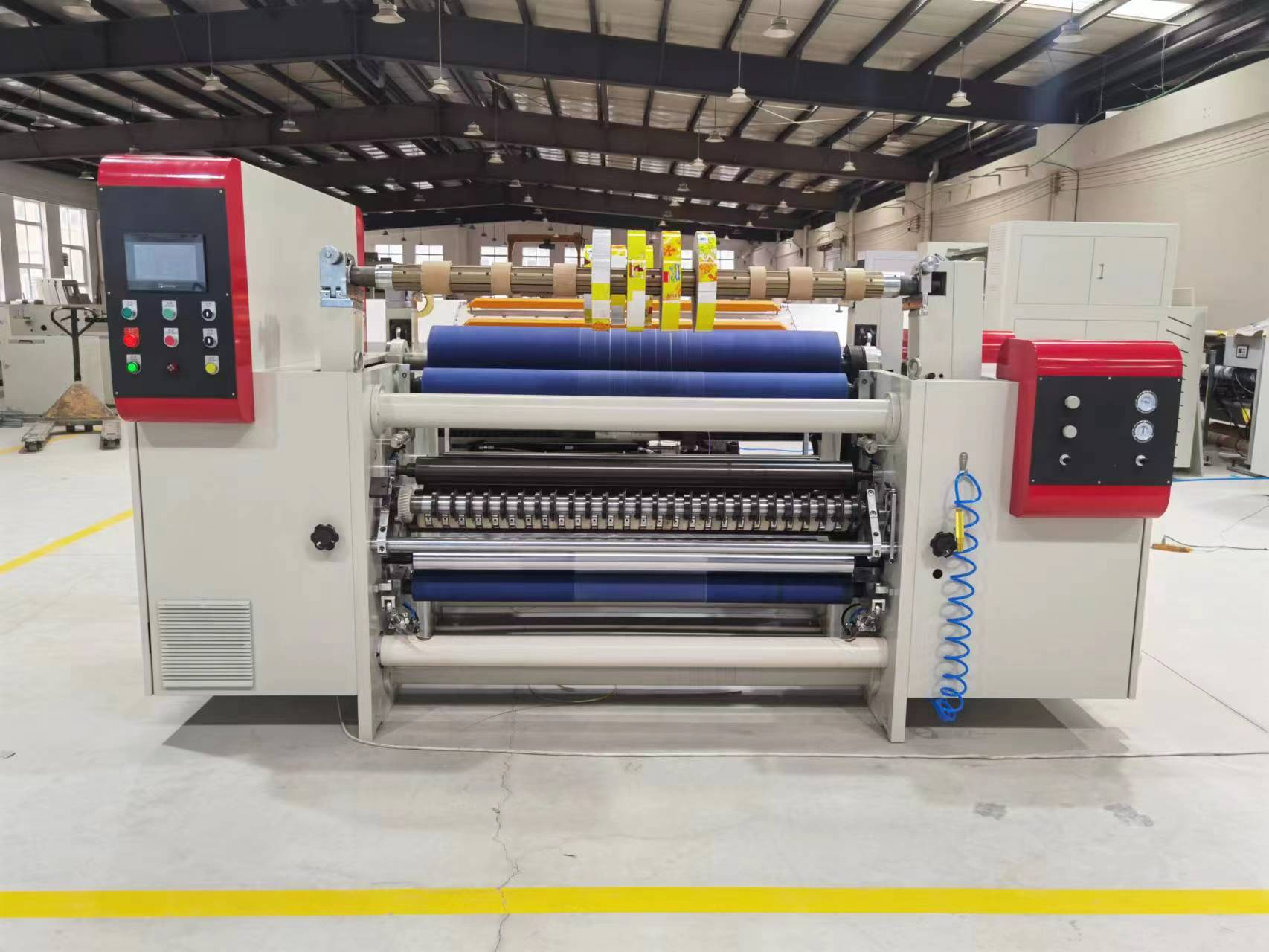

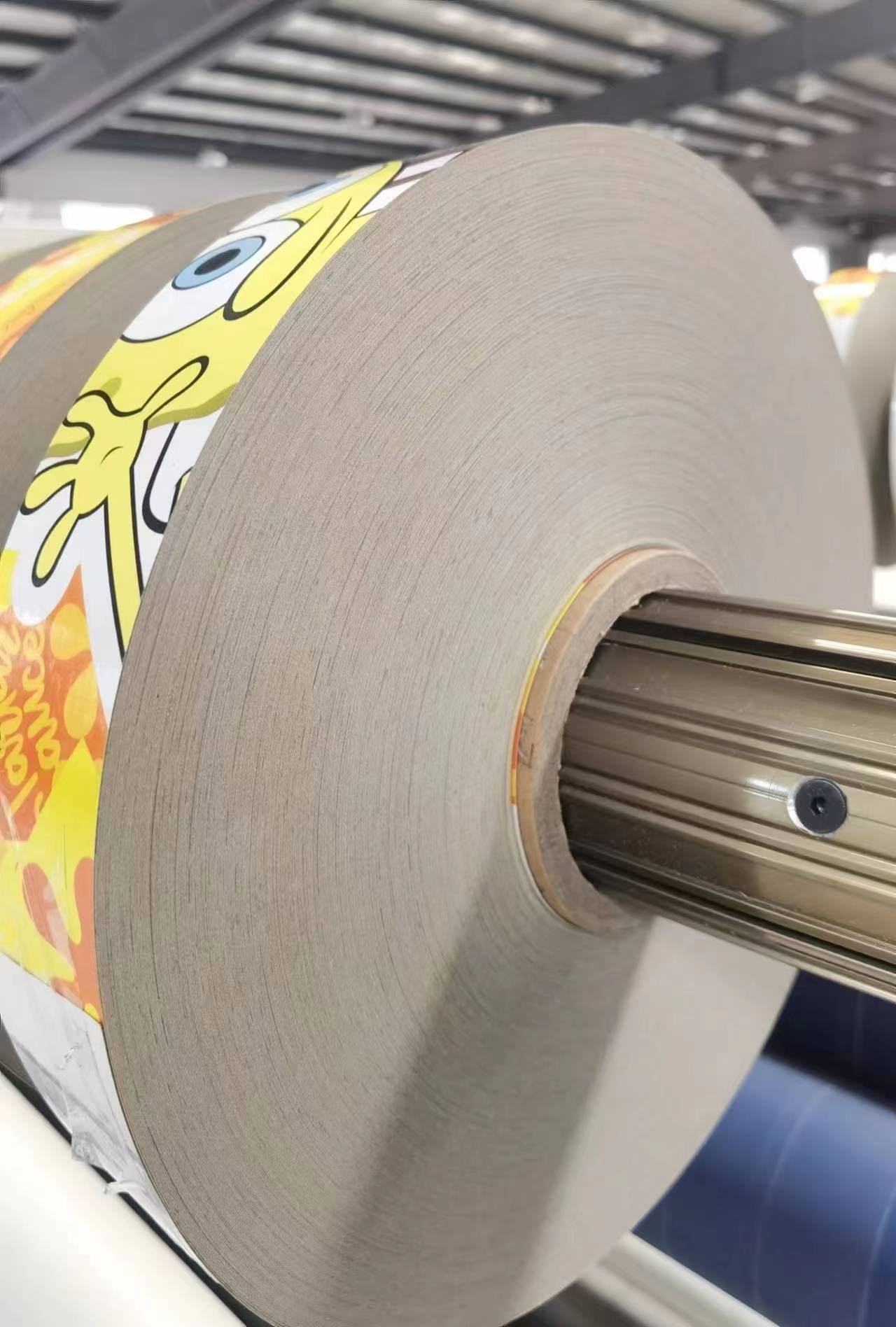

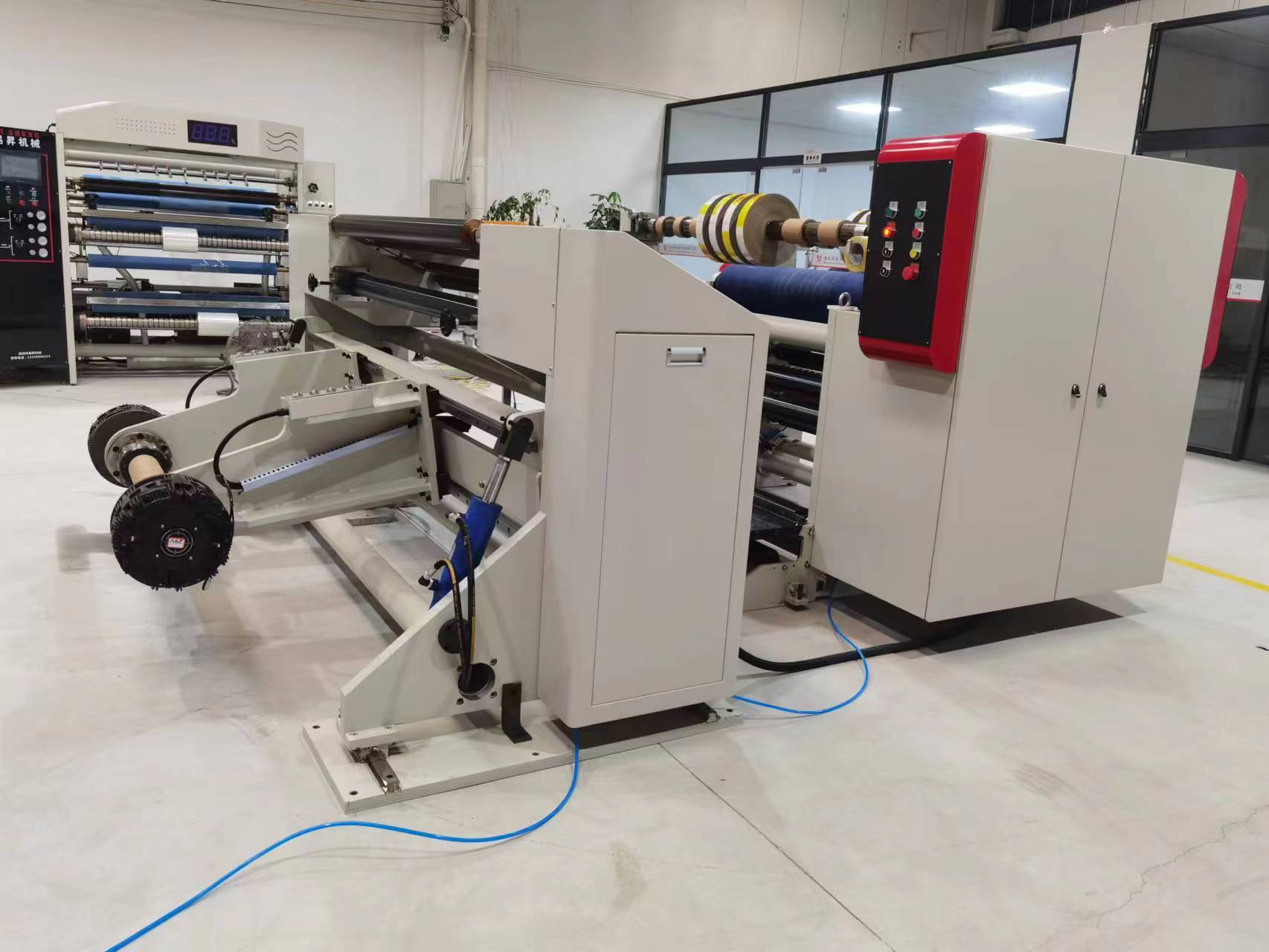

Machine Detailed Pictures:
