二．技术参数：Technical Parameters： | |
型号 | HJLM-S2000 |
机械速度Mechanical speed | 10-500m/min |
最大材料宽度Max.width | 50-2000mm |
分切材料厚度Slitting thickness | 25-500g/m² |
最小分切宽度Minimum cutting width | 50mm |
分切精度Slitting accuracy | ±0.1mm |
最大放卷直径Max.diameter of unwinding | ≥2000mm |
最大收卷直径Max.diameter of rewinding | ≥1200mm |
纠偏方式EPC | 光电或超声波跟踪Photoelectric or ultrasonic tracking |
张力控制方式Tension controller | PLC控制PLC control |
总功率（KW）Power（KW） | 38KW |
机器重量Machine weight | 约7000kg |
机器尺寸（mm）长×宽×高Machine size（mm）L*W*H | 7500×3700×2600mm |

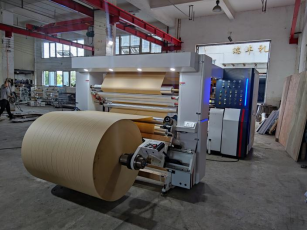

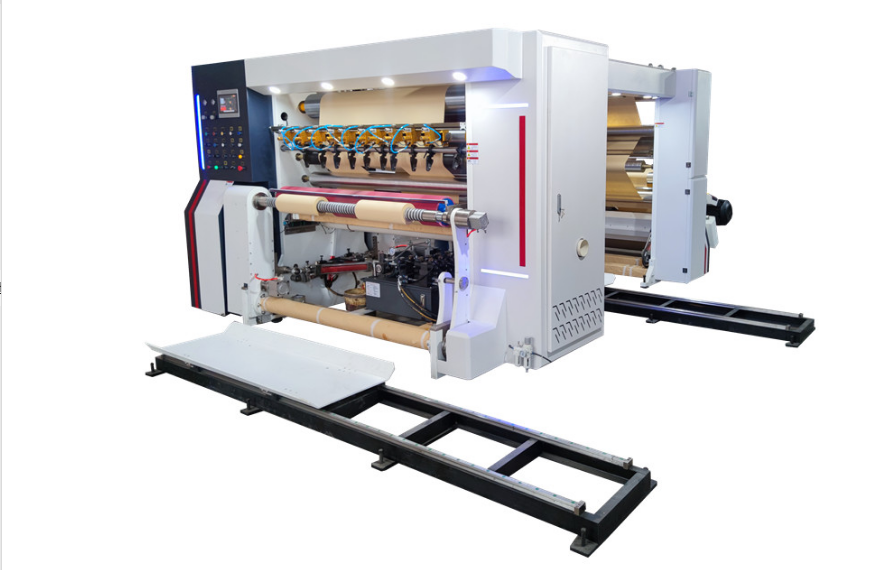

机器颜色Machine color | 参考上面图片Refer to the picture above |
工作电压Voltage | 三厢380VThree-phase 380V-50HZ |
三．机器详细配置单：Detailed arrangement list： | |||
1.放卷部分Unwinding part | |||
放卷工位Unwinding station | 单工位Single station | ||
支撑方式Support way | 采用钢板结构 | ||
放卷宽度Width of unwinding | 240-2000steel plate construction | ||
放卷张力控制Clamping expansion mode | 伺服电机 | ||
电机功率power | 11KW | ||
过料导辊宽度Max.width of unwinding | 2000mm | ||
放卷直径Max.diameter of unwinding | ≥2000mm | ||
最大承重量Max.loading bearing | 5000KG | ||
放卷方式Unwinding method | 液压无轴自动上下料Hydraulic automatic loading and unloading | ||
轴头直径Diameter of shaft core | 3英寸与6英寸3 "6" air expansion shaft head
| ||
控制方式Control way | 气磨刹Air grinding brake | ||
上下料方式Loading and unloading methods | 液压自动上下料Hydraulic automatic loading and unloading | ||
放卷纠偏Web guide system | 蝙蝠科技纠偏系统Photoelectric correction (linear guide rail for left and right movement)） | ||
纠偏行程EPC stroke | ±75mm | ||
过料导辊Guide roller | 2050mm | ||
接料平台Spice plate | 接料平台，气动压紧。Pneumatic Spice plate（Cylinder pressing material, convenient refueling ） | ||
2.牵引＋传动部分 | |||
机器结构Machine construction | 采用优质钢板结构High quality steel plate construction
| ||
铁板厚度Thickness of steel plate | 60mm | ||
驱动和传动机构Drive and transmission mechanism | 伺服电机Servo motor | ||
电机功率Power | 11KW | ||
结构型式Construction type | 压紧辊采用橡胶辊，主动辊采用镀铬钢辊Active traction pneumatic compression method | ||
牵引方式Nip way | 主动牵引气动压紧方式The pressing roller adopts rubber roller and the active roller adopts chrome-plated steel roller | ||
辊筒宽度Roller width | 2050mm | ||
压紧方式Pressure way | 气缸压紧Cylinder control | ||
3.分切部分：Slitting part： | |||
分切方式Slitting way | 圆刀或直刀Round knife&Razor blade | ||
调节方式Adjusting way | 手动调节manual | ||
分切精度Slitting accuracy | ±0.1mm | ||
安全部分Safety part | 刀座安全采用刀座安全保护罩Knife holder safety cover is made of 1.5mm thick cold rolled plate + transparent plexiglass | ||
刀片数量Blade quantity | 10把Round blade:10pcs，razor blade:10pcs | ||
特别备注Special remarks | |||
4.收卷部分Rewinding part | |||
结构方式Structural mode | 双轴收卷Roller A&B up and down alternate rewinding | ||
收卷材料和支撑方式Rewinder & support mode | 全自动卸料Mechanical arm, pneumatic control
| ||
驱动方式Drive mode | 伺服电机Servo motor | ||
电机功率Motor power | 11KW×2 | ||
导辊宽度Width of guide roller | 2050 | ||
收卷工位Work station | 双工位Double station | ||
收卷轴Rewinding roller | 键条式气胀轴Pad Shaft | ||
最大收卷直径Max.diameter of rewinding | ≥1200mm×2 | ||
5.下料部分Discharge part | |||
卸料方式Discharge method | 自动卸料Automatic discharge | ||
下料方式Cutting method | 自动上下Automatic up and down | ||
最大承重Max load | 2500kg | ||
6.控制部分：Control part | |||
控制方式Control way | PLC集中控制PLC controller | ||
其它附带功能Other Additional features | 1.余料检测停机。2.显示总米数与直径。3.工作米数。4.设置米数感应自动减速停机。5.收放卷张力自动控制6.采用进口PLC实现精确和稳定的控制功能，真彩触摸屏使图象显示简洁美观。对话式参数设定环境，免除繁杂设定即可启动作业：用户开机前只需输入原料的厚度，宽度，密度，直径及速度等参数，接下来的工作全部由电脑自动计算完成. Automatic stop of residual material detection. 2. Display total meters and diameters. 3. Working meters. 4. Set meter sensing automatic deceleration stop. 6. Adopt imported PLC to achieve accurate and stable control function. The true color touch screen makes the image display simple and beautiful. Dialog parameter setting environment, without complicated setting can start the operation: the user only needs to input the thickness, width, density, diameter and speed of the raw material before starting the machine, and the following work will be automatically calculated by the computer | ||
工作电压Voltage | 三相380VThree-phase 380V-50HZ | ||
7.其它部分：Other parts: | |||
吹废边方式Blow waste edge method | 离心风机吹走Centrifugal fan blowing away | ||
废边处理方式Waste edge treatment | 从机器侧面吹出Blowing out of the side of the machine | ||
速度显示表Speed indicator | 1套（在屏幕上显示机器工作速度）1set（Display the machine speed on the screen） | ||
四．详细配置清单Detailed Configuration List | |||
名称Name | 数量Quantity | 品牌Brand | |
PLC | 1套1set | 德国西门子Siemens | |
触摸屏Touch screen | 1套1set | 北京昆仑通态Beijing Kunlun tongtai | |
牵引伺服电机Servo motor | 1套1set | 11KW上海丹马Shanghai Danma | |
主变频器Main frequency converter | 1套1set | 11KW德国力士乐German Rexroth | |
收卷电机Winding motor | 2套2set | 11KW上海丹马Shanghai Danma | |
收卷变频 | 2套2set | 11KW德国力士乐German Rexroth | |
放卷刹车Unwinding brake | 1套2set | 气磨刹Air grinding brake | |
纠偏系统EPC | 1套1set | 蝙蝠科技Bat Technology | |
收料轴Rewinding friction roller | 2条2set | 键条式气胀轴China Gaozhi | |
普通轴承Plain bearing | 1套1set | NSK japan | |
单向轴承One-way bearing | 1套1set | NSK japan | |
气动元件Pneumatic component | 1套1set | 源伙伴China Gaozhi | |
风机Air blower | 1个1set | 国产高质China Gaozhi | |
胶辊＋钢棍Rubber roller + steel roller
| 1套1set | 国产高质China Gaozhi | |
铝导辊Aluminum guide roller | 1套1set | 国产高质量（表面硬质氧化处理）China high quality (hard surface oxidation treatment) | |
1套1set | 法国施耐德Schneider France | ||
刀knife | 10把10set | 三辉China Gaozhi | |
模块module | 1套1set | 德国西门子Siemens, Germany | |
编码器encoder | 1套1set | 韩国奥托尼克斯AUTONICS | |
1套1set | 中国China | ||
五．发货随机备件：Delivery of random spare parts: | ||
名称Name | 规格Specification | 数量Quantity |
工具箱Work-box | 标准Standard | 1套1set |
油枪Oil gun | 标准Standard | 1个1set |
气嘴易损件Air nozzle wearing parts | 标准Standard | 2个2set |
机架水平垫Rack level pad | 标准Standard | 1套1set |
机器说明书machine instruction | 标准Standard | 1份1set |
