Main Technical Parameters:
Max web width | 1300/1600mm |
Max rewind diameter | 800mm |
Max unwind diameter | 1000mm |
Min slitting width | 25mm |
Power voltage | 380V |
Cutting precision | 0.2mm |
Total power | 4.0/5.5kw |
Cutting speed | 10-200m/min |
Machine weight | 2000kg |
Description：
þMeter counting
þOne photoelectric eye for web guide
þ10 sets straight knife
þ3 inch air shaft for unwinding
þ1.5 or 2 inch air shaft for rewinding shaft (Make according to your request)
3.machine detailed pictures:
 |
|

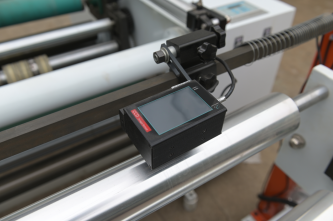

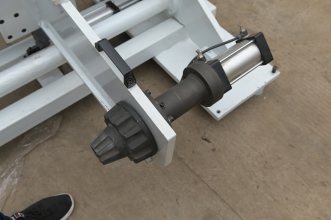

CCD web guide | Top cone unwind |
|
|

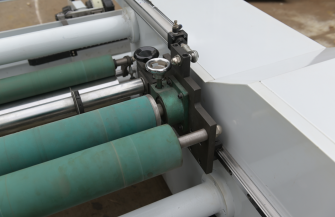

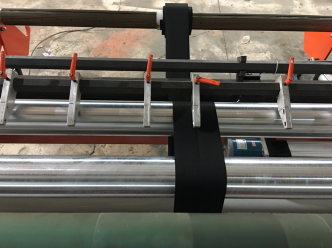

Pressure roller | Slitter knives |
|
|

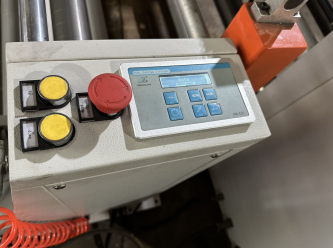

blower | Web guide controller |
