1.Main Technical Parameters:
| Max width of raw material | 630-800mm |
Max diameter of raw material | 800mm（1000mm) |
Cutting speed | 200m/min |
Rewind paper core diameter | 75mm |
Max rewind diameter | 500mm |
Min cutting width | Razor knife(5mm) round knife(12mm) |
Total power | 5-7.5kw |
Machine weight | 2000kg |
Automatic feeding(pneumatic) weight | 800kg |
2.Description:
þMain motor:4KW
þFrequency inverter: 4KW
þPLC control, touch screen operation
þTension control: Both unwind and rewind use auto taper tension control, þoperation in touch screen
þWeb guide: Edge tracking web guide
þUnwind and rewind both use 3 inch air shaft
þMagnetic powder brake 50N.M:1 pcs
þMagnetic powder clutch 50 N.M: 2 pcs
þ8 sets straight slitting knife
þUnwind use auto loading system( Equipped with electronic pressure type, max. Bear 800KG)
Machine Detailed Pictures:
|
|

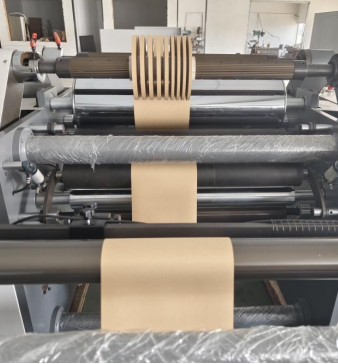

Slitting | Separate unwind |
|
|

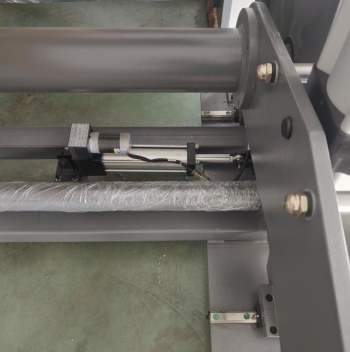

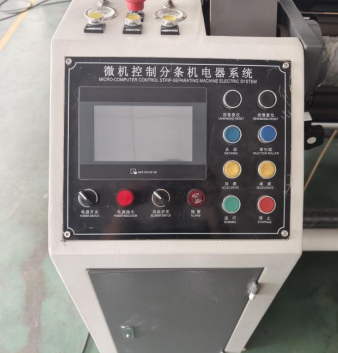

Web guide motor | Touch screen |
|
|

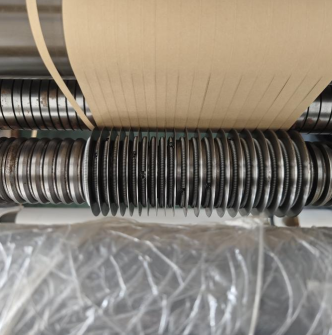

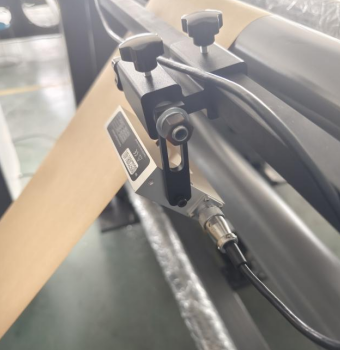

Web guide | Slitter knives |
