Main Technical Parameters:
| Parameters: | |
Descriptions | Parameters |
Slitting speed | 75m/min |
Die-cutting speed | 70m/min |
Max. web width | 320mm |
Die-cutting length | 178mm-470mm |
Max. unwinding diameter | 500mm |
Max. rewinding diameter | 400mm(200mm for turrent rewind) |
Power voltage | 220V, single phase |
Overall dimensions | 1.6m*1.1m*1.52m(L*W*H) |
Machine weight | 800kg |
Description:
þWith two rotary die cut station.
þWith meter counting.
þWith EPC auto web guide for make material feeding smoothly.
þWith 8 sets rotary knife in slitting station.
þWith one slitting station.
þWith die cutter seat.
Machine Detailed Pictures:
|
|

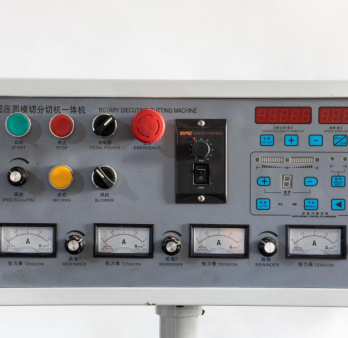

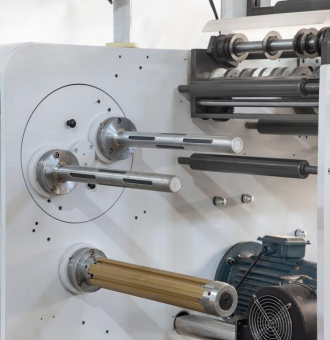

Control panel | Turret rewind |
|
|

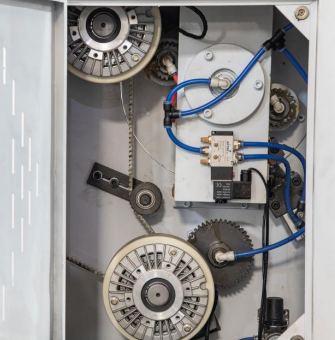

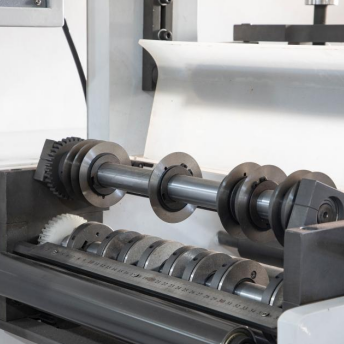

8 sets Round knife | Rewind magnetic powder |
|
|

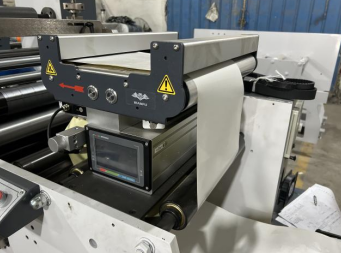

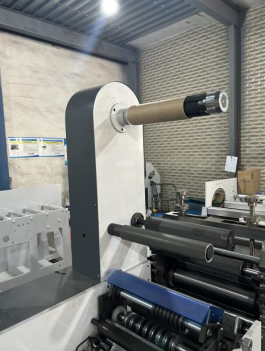

EPC Web guide | Waste collection |
|
|

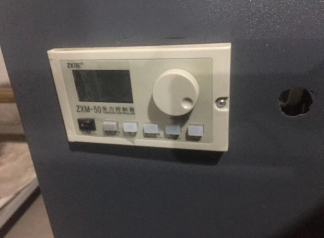

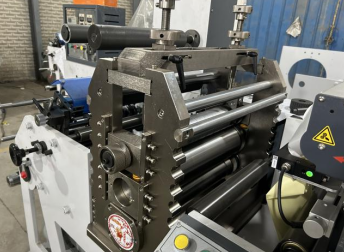

Die cutter seat running more stable | Tension controller |
4.Option configuration:
 |
|

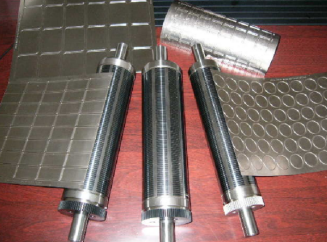

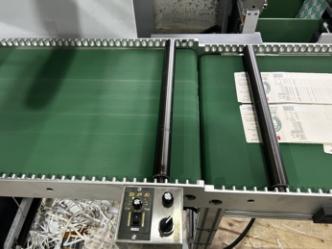

Magnetic roller and knife skin | Sheeting conveyor |
