1.Main Technical Parameters:
Slitting speed | 120m/min |
Die-cutting speed | 60m/min (intermittent) |
120m/min (full-rotary) | |
Max web width | 320mm |
Max unwinding diameter | 650 mm |
Max rewinding diameter | 650 mm |
Die cutting length | 200mm-450mm (intermittent) |
250mm-550mm (full rotary) | |
Overall diameter | 2300* 1300* 1500mm |
Machine weight | 1000kgs |
Voltage | 380V, 3P |
Power | 12KW |
2.Description:
þOne rotary die cutting station with waste rewinder shaft
þOne Lamination station with waste rewind for over-lamination film with liner
þWith 1pc 3’’ unwinding shaft with tension controller.
þWith 2pcs 3'' air shaft for rewind
þWith meter/number counter.
þWith one register sensor
þWith 8 pcs rotary knife.
þMachine has blower fan to blow away the trimmed sides.
þWith auto web guiding
3.Machine Detailed Pictures:
 |  |

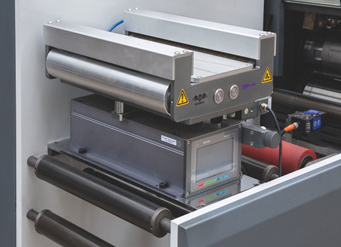

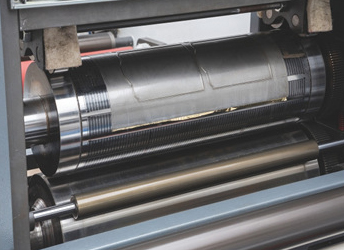

| die cutting unit | web guide |
 |  |

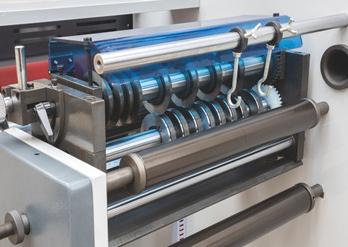

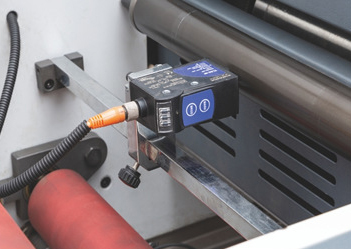

color sensor | slitting unit |
 |  |

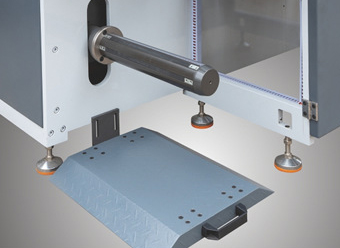

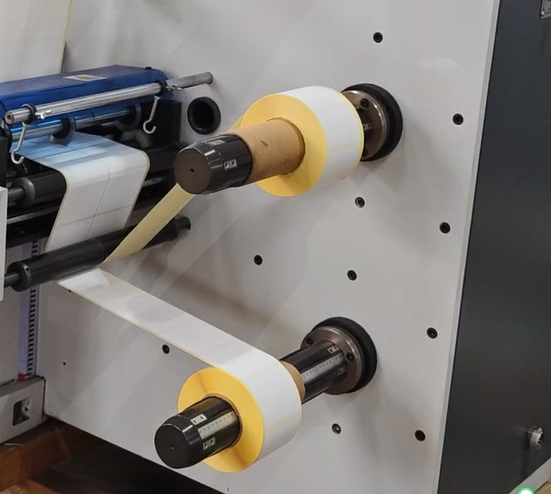

| unwinding | rewinding |
