HJFQ-320 Slitting Rewinding Machine

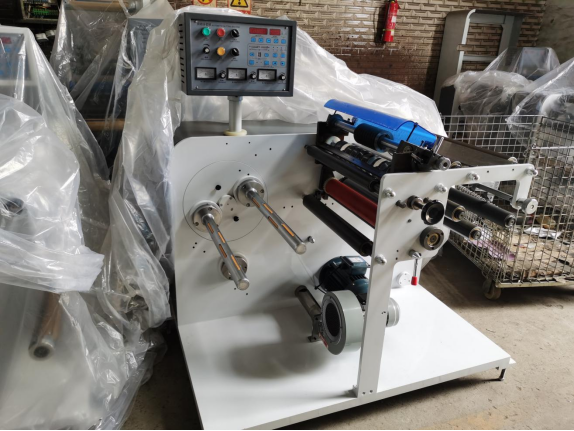

This machine is with up and down rewind.

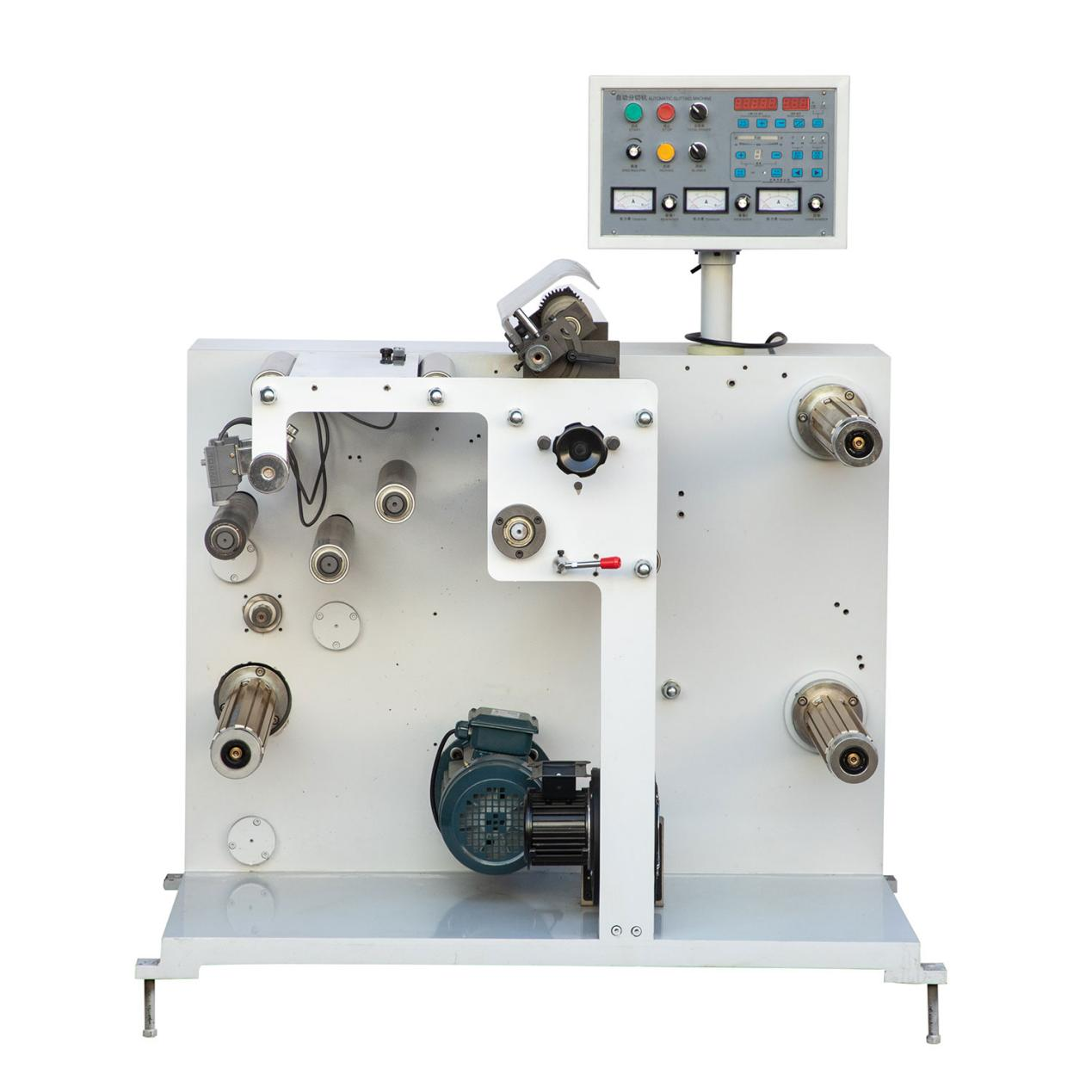

This machine is with turret rewind. | ||

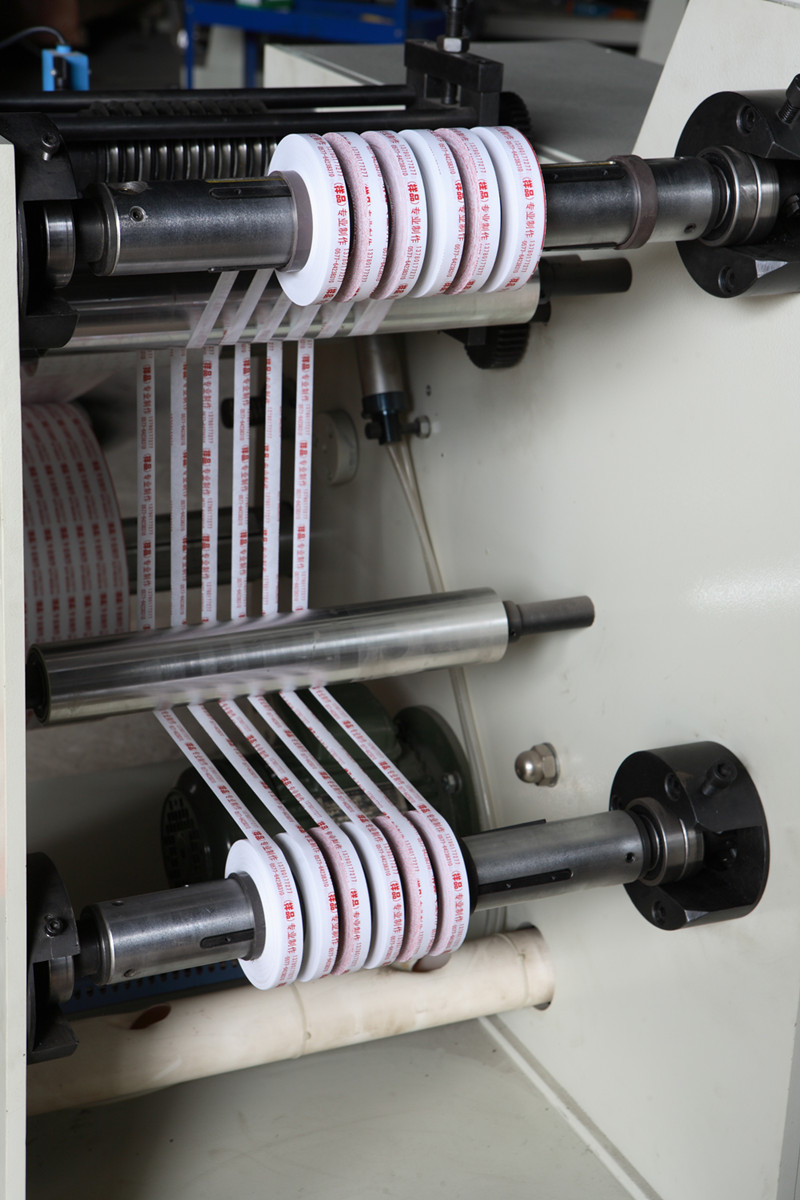

Slitter sample： | ||
|
|
|
Parameters: | |
Descriptions | Parameters |
Model | HJFQ-320 |
Cutting speed | 5-120(m/min) |
Max web width | 320mm |
Max unwinding diameter | 600mm |
Max rewinding diameter | up rewind(turret):200mm down rewind:500mm |
Min. width after slitting | 20mm |
Slitting precision | 0.2mm |
Total power | 2.5kw |
Overall dimension | 1.3(L)*1.0(W)*1.28 (H) |
Weight | About 600kg |
Pictures for reference: | |
|
|

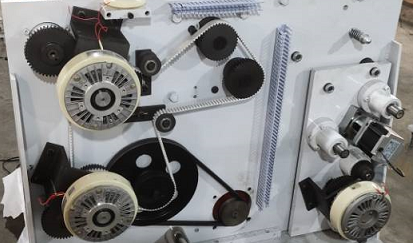

Magnetic Powder | Motor+blower |
|
|

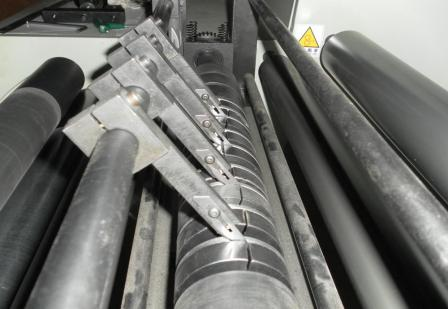

Straight knife | Round knife |
|
|

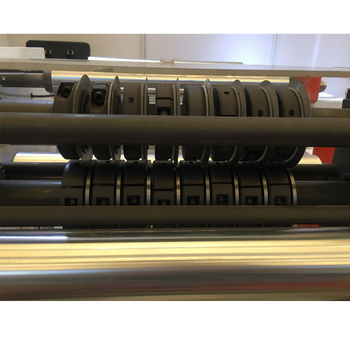

Rewinding | Round knives(8 sets) |
