Main Technical Parameters:
Mechanical speed | 350m/min |
Max unwind diameter | 800mm |
Cutting width | 30-1300mm |
Max rewind diameter | 600mm |
Overall dimensions(L*W*H) | 2500*3000*1950mm |
Machine weight | About 3500kg |
Characteristic:
þ3 inch and 6 inch shaftless air pressure cone top unwinding
þLaser paper core positioning technology
þError correction method EPC/LPC（web guide)
þMain control system(PLC+HMI)
þSubsection tension control technology(auto taper control)
þDrive mode(Asynchronous servo motor control)
þFriction shaft(3inch)
Cutting methods(razor cut or round cut)
Machine Detailed Pictures:
|
|

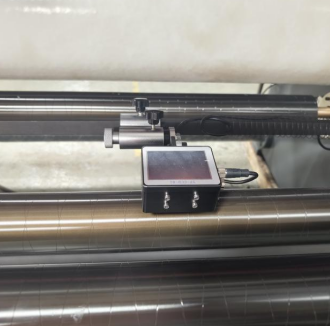

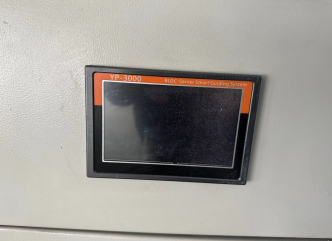

CCD web guide | Web guide controller |
|
|

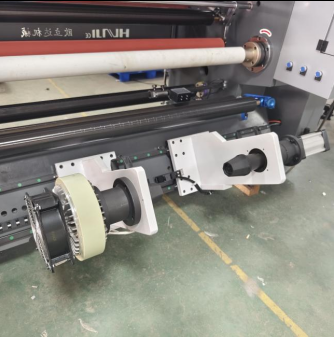

Friction shaft | Shaftless unwind |
|
|

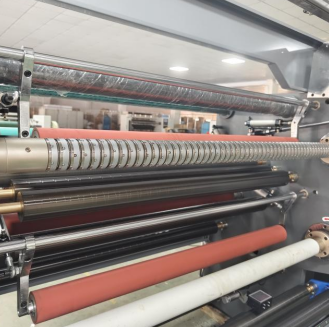

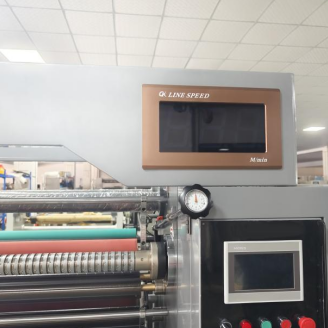

Slitter rolls | Speed display |
