1.Main Technical Parameters:
| Mechanical speed | 350m/min |
Max unwind diameter | 800mm |
Cutting width | 30-1300mm |
Max rewind diameter | 600mm |
Overall dimensions(L*W*H) | 2500*3000*1950mm |
Machine weight | 3500kg |
Characteristic:
þ3 inch and 6 inch shaftless air pressure cone top unwinding
þLaser paper core positioning technology
þError correction method EPC/LPC（web guide)
þMain control system(PLC+HMI)
þSubsection tension control technology(auto taper control)
þDrive mode(Asynchronous servo motor control)
þFriction shaft(3inch)
Cutting methods(razor cut or round cut)
|
|

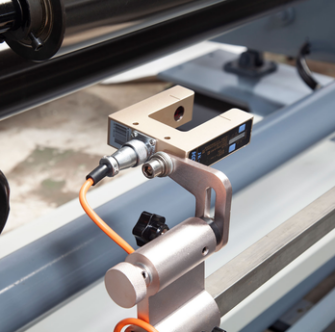

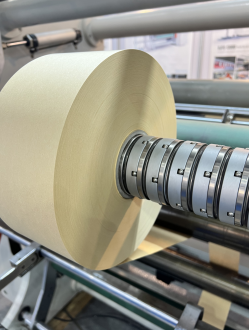

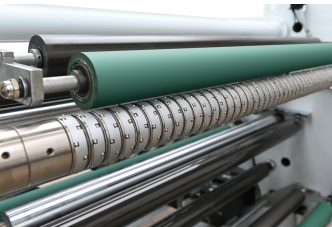

Web guide | Friction rewind |
|
|

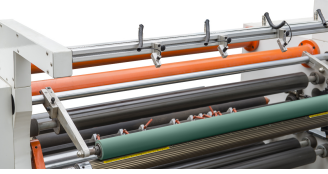

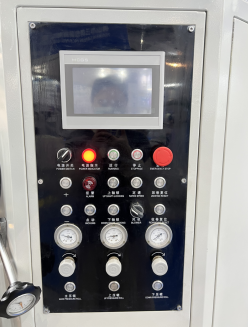

Control panel | Pressure roller |
|
|

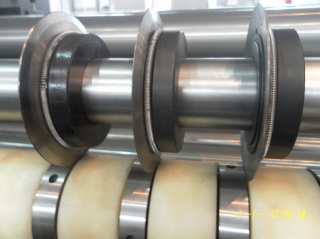

Round knife | Laser position |
