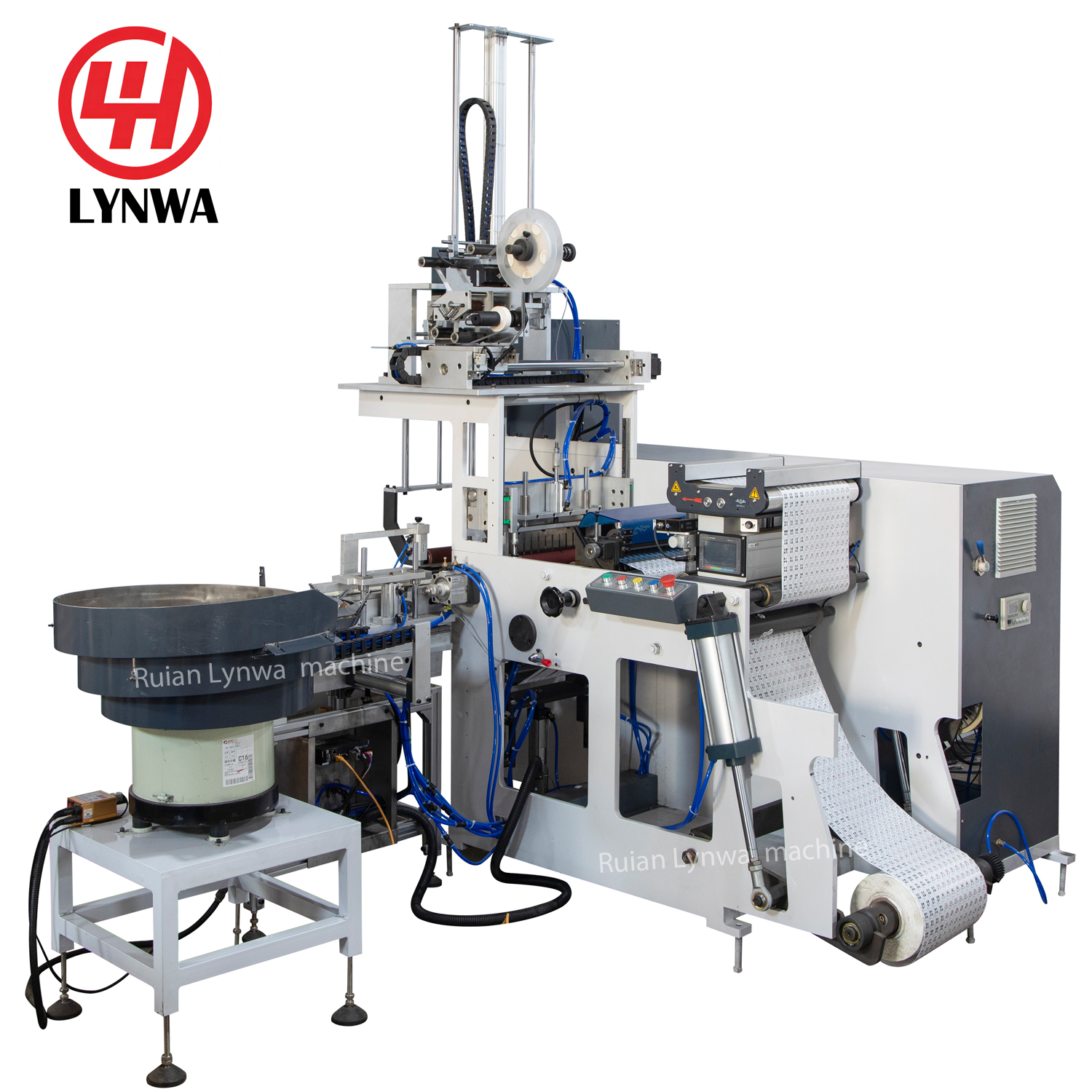

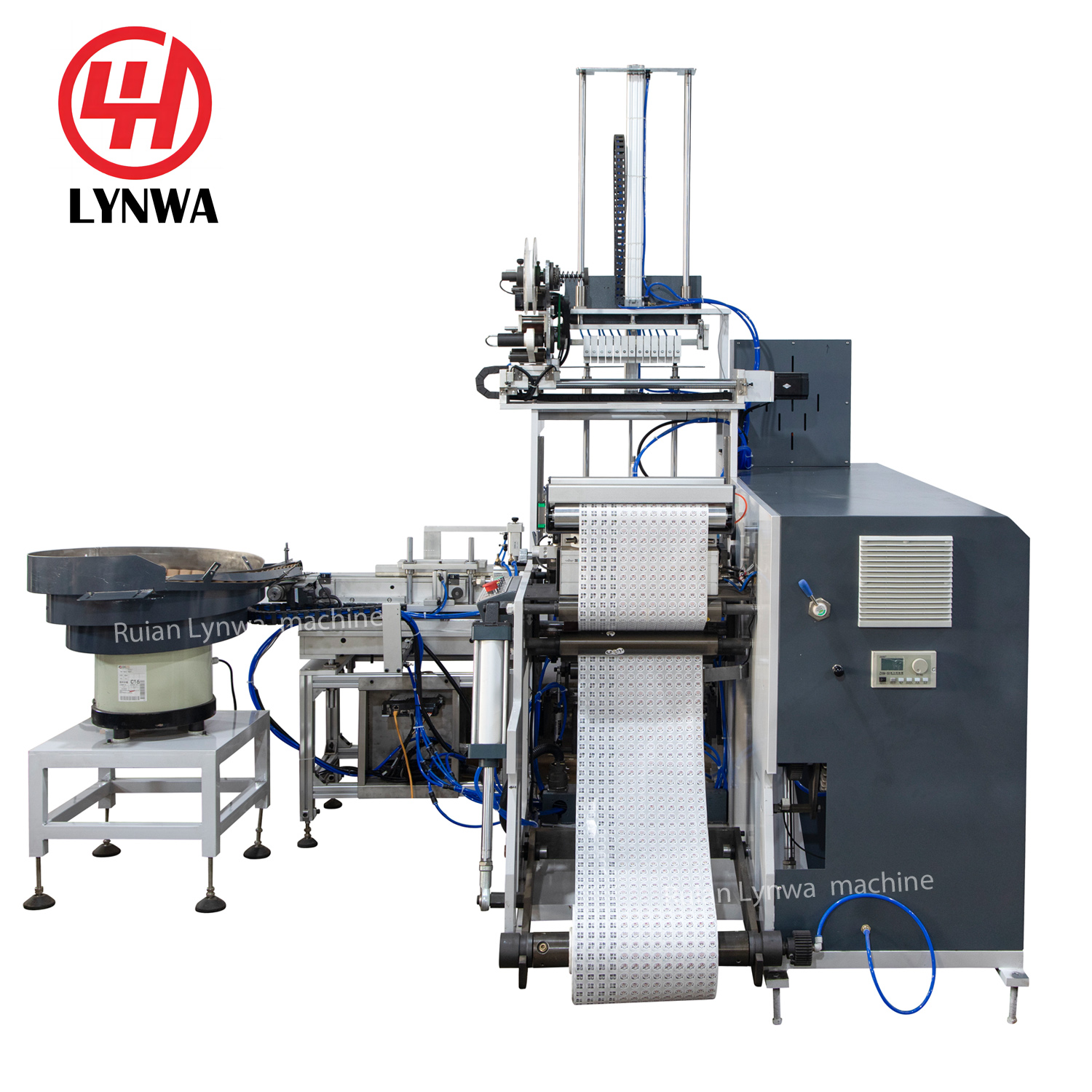

Auto slitting machine with auto turret rewind,auto labeling ,auto paper core loading
| ||
Sample： | ||
|
|
|
Parameters: | |
Descriptions | Parameters |
Max web width | 350mm |
Max.speed | 220m/min |
Max rewinding diameter | 140mm |
Max. unwinding diameter | 600mm |
Cutting precision | ±0.1mm |
Voltage | 220V, single phase |
Overall Dimension | 1750*2800*2400mm |
Weight of Machine | 1200kg |
Total power | 6kw |
Pictures for reference: |
|

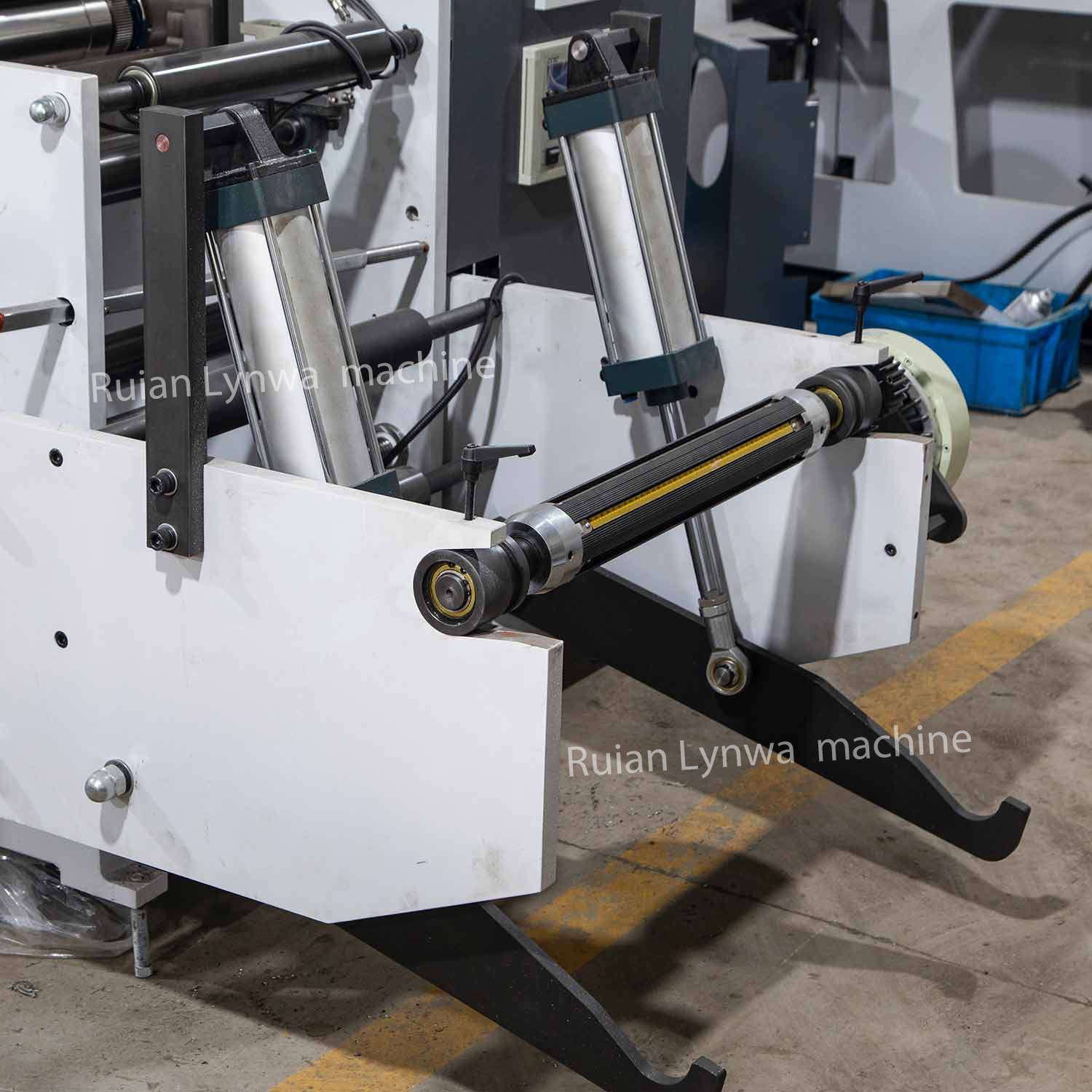

Unwind l 3 inch unwind shaft l Auto tension |

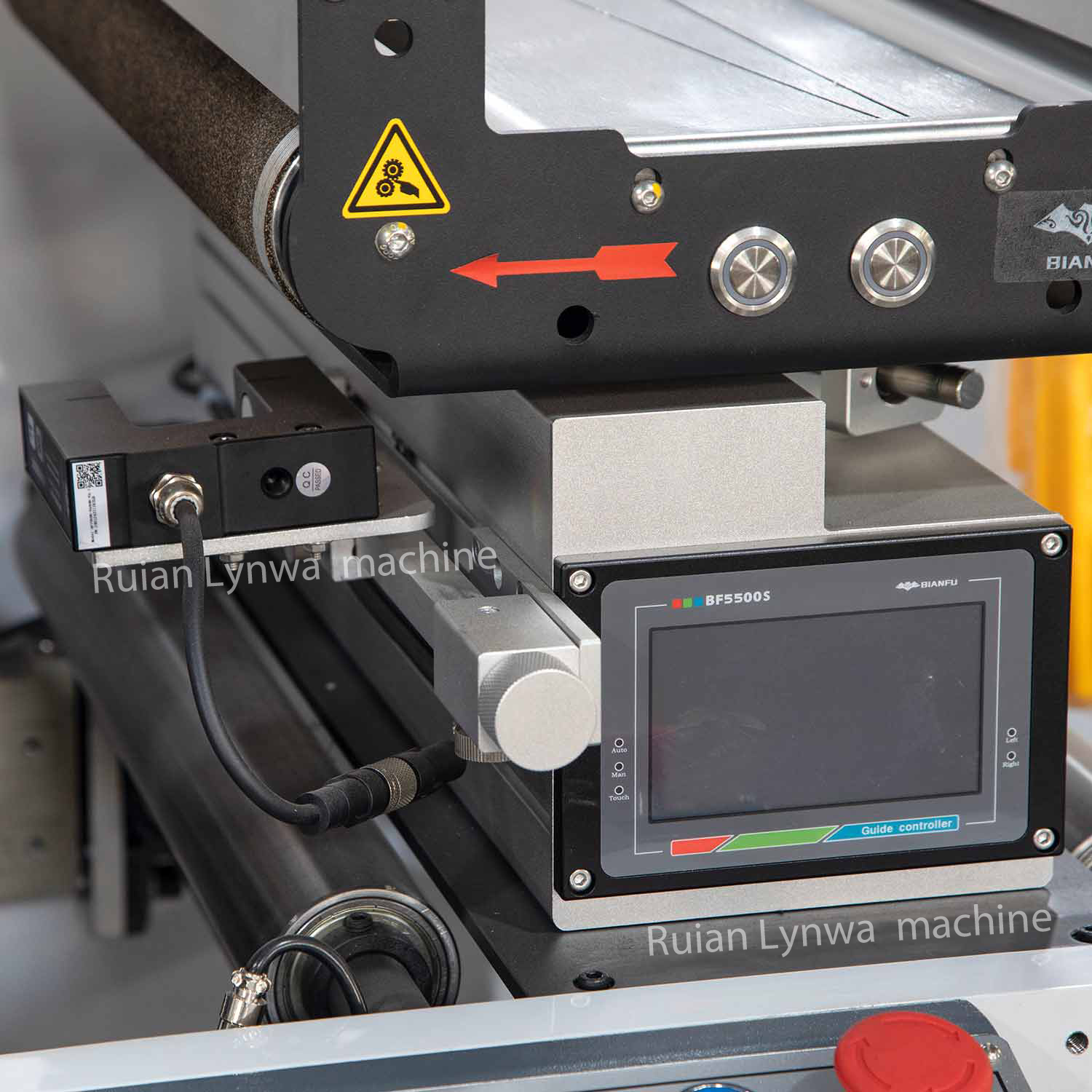

Web guide system l Ultrasound web guide system |

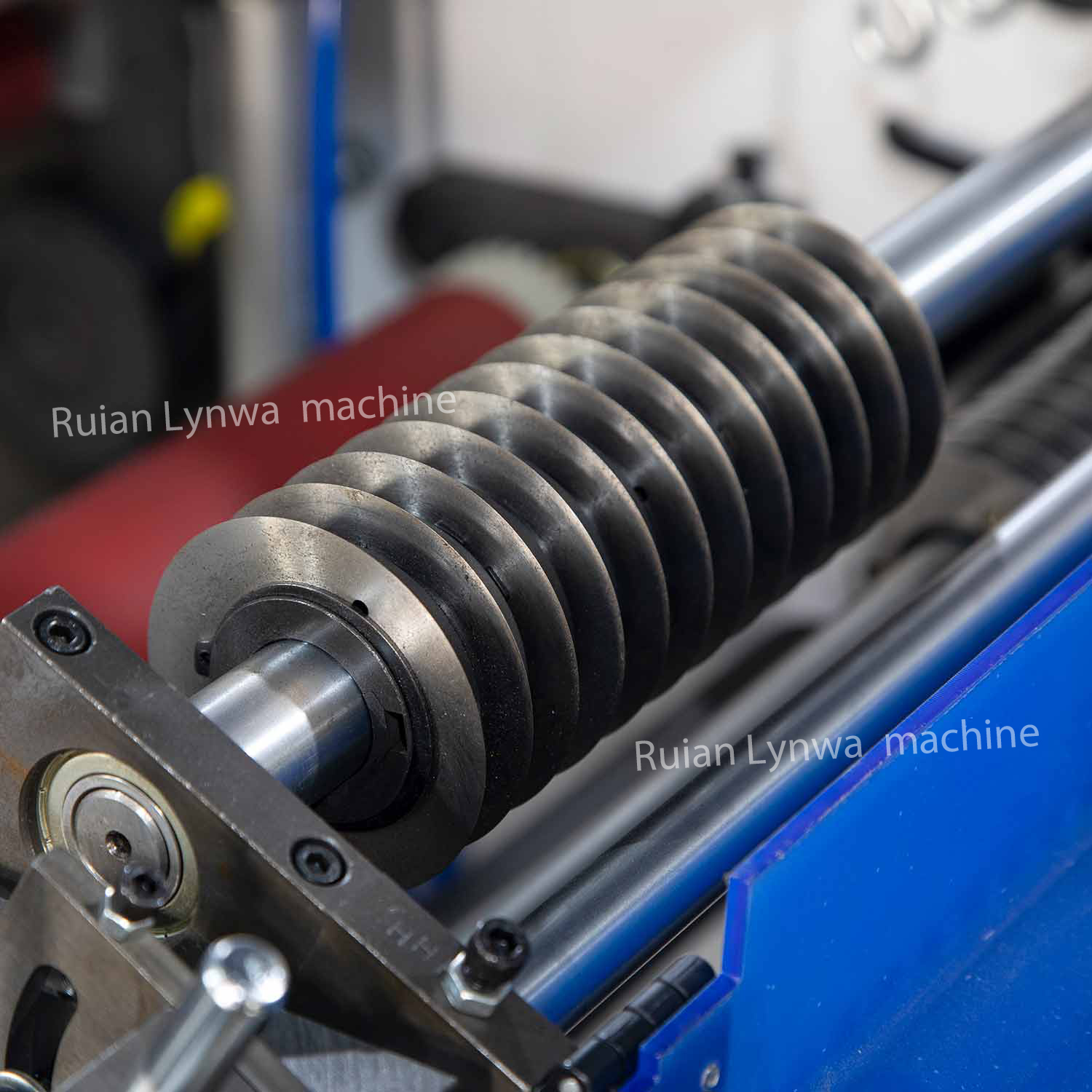

Slitting knife l 8 set round knife l Specify the handwheel l Vacuum absorption l Pulling paper traction roller (servo) |

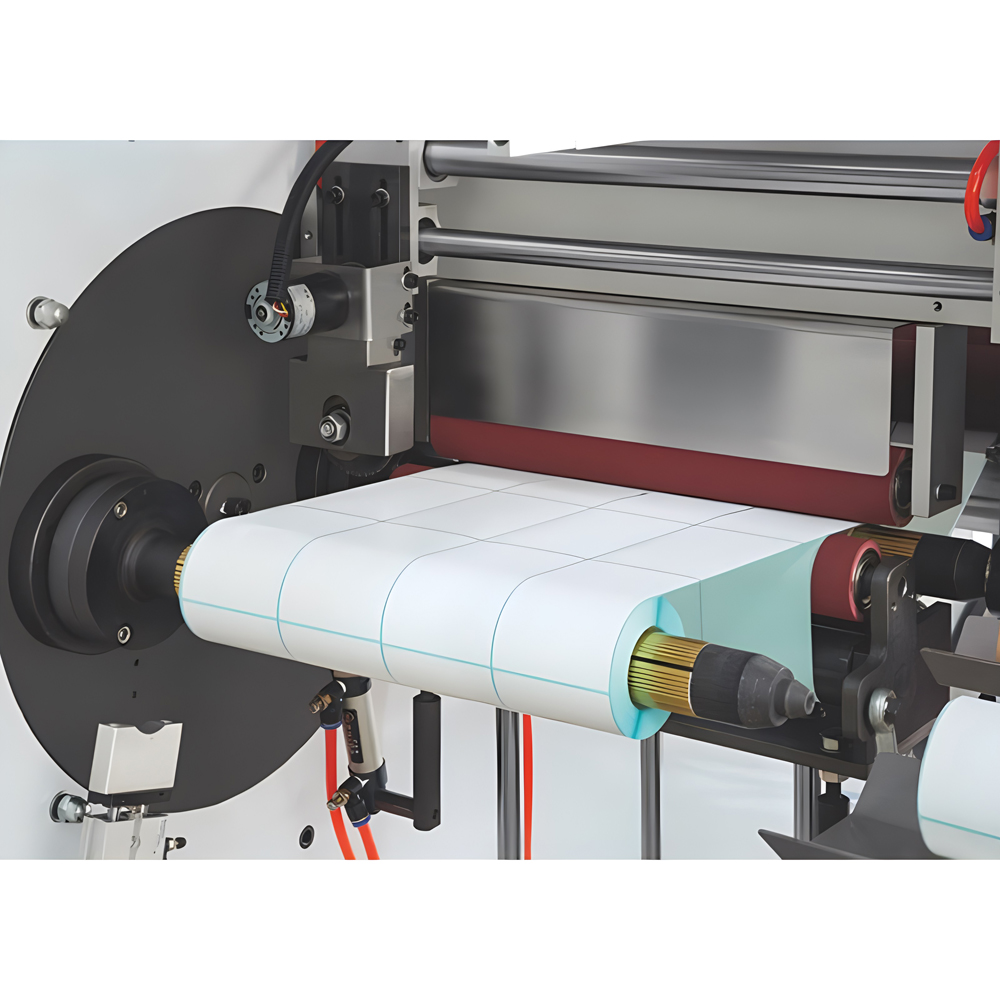

Rewind l Auto turret rewind(servo motor control) l 2 pcs 1 inch rewind shaft and 2 pcs 2 inch rewind shaft l Automatic inflatable l No adhesive paper assembly l Automatic flying knife device |
|

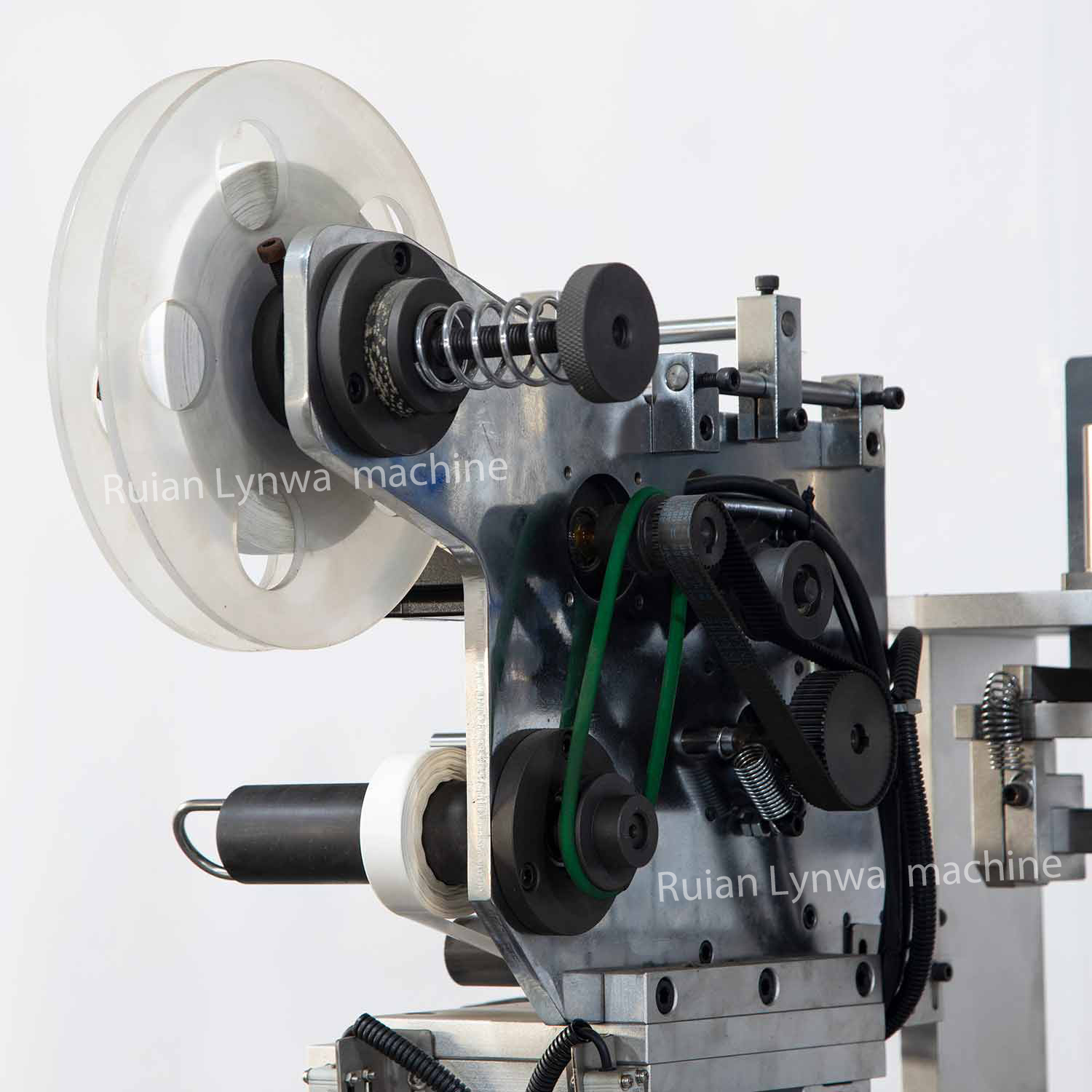

Auto labeling l Automatic vomiting (servo) |
 |

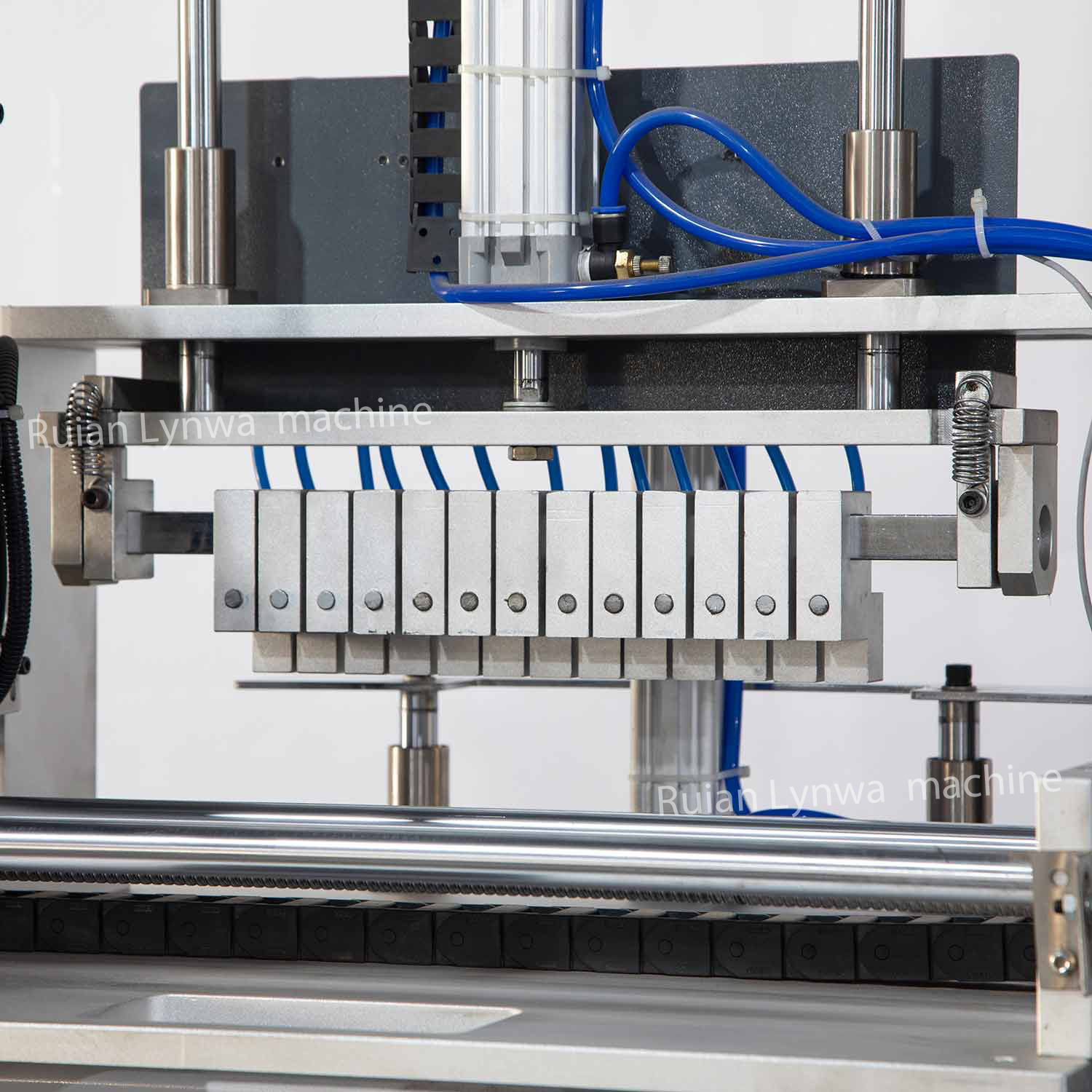

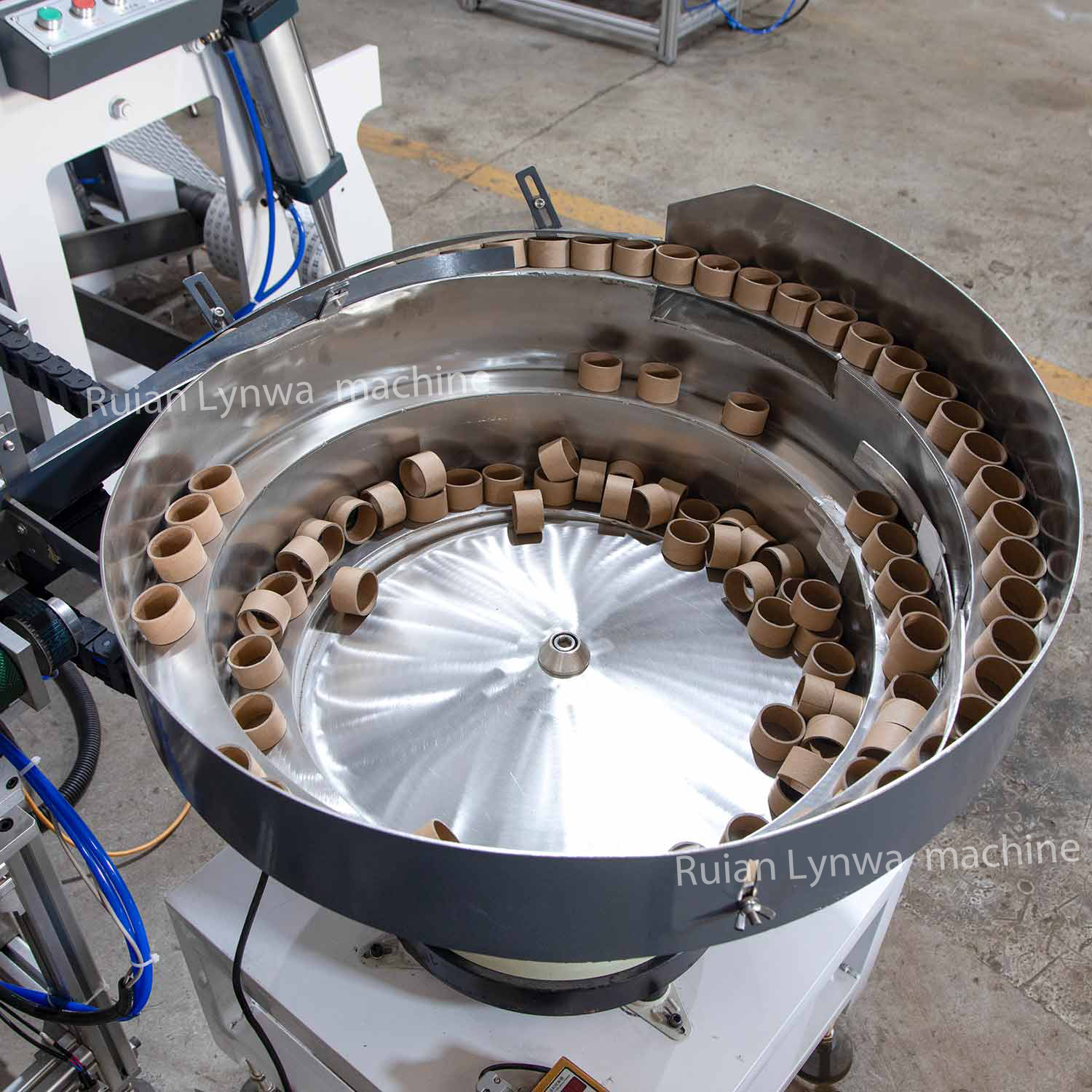

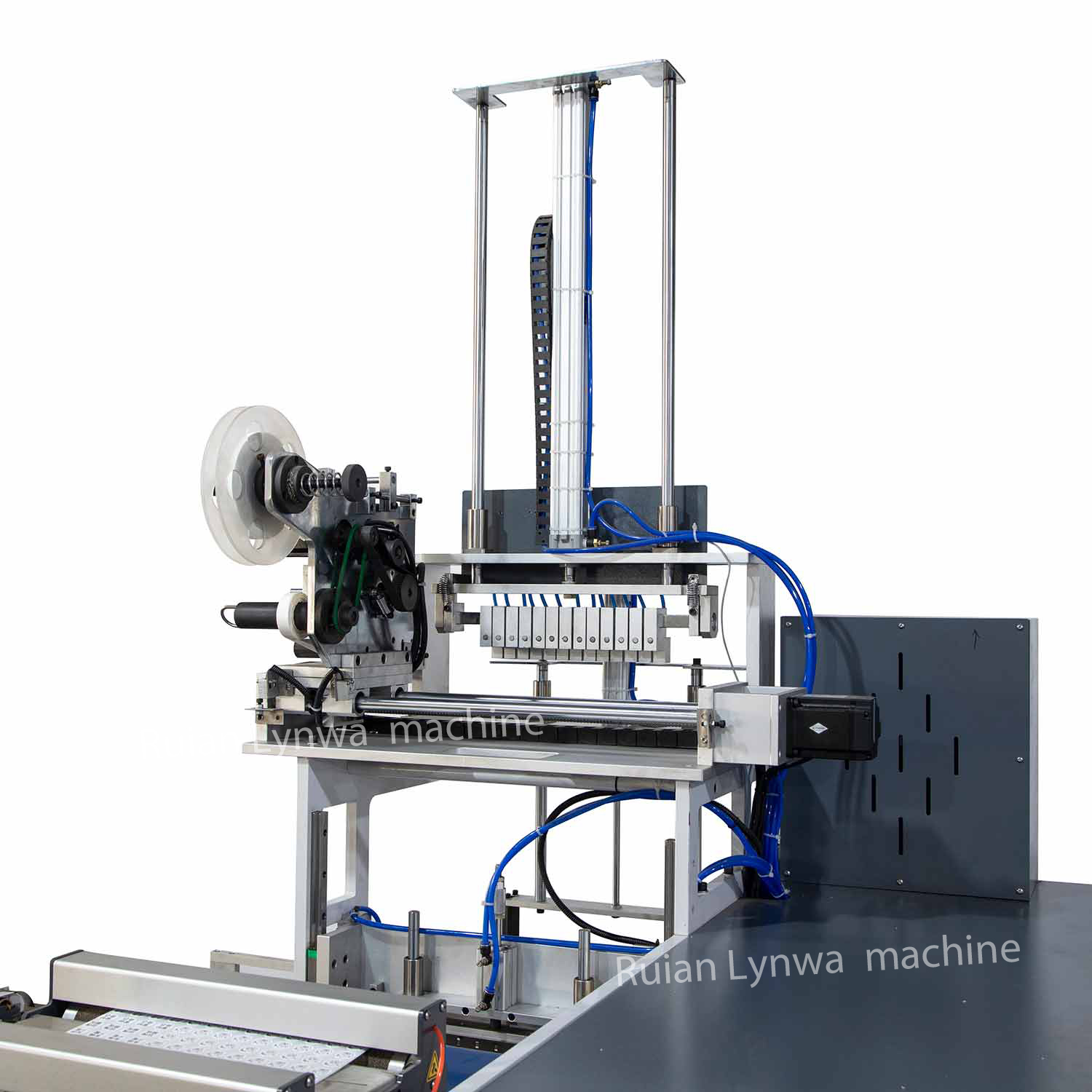

Auto paper core loading l Paper tube vibration plate l Automatic paper tube device l Automatic suite tube device l Automatic feeding l Cylinder |
