1.Machine Technical Parameters:
| Mechanical speed | 300m/min |
Max unwind diameter | 1000mm |
Cutting width | 25-1300mm |
Max rewind diameter | 600mm |
Driving type | 3 motor |
Cutting type | Razor/round cutting knife |
Main control system | PLC+HMI |
Tension control type | Auto taper control |
Web guide type | EPC&LPC |
Machine weight | About 3000kg |
Overall dimensions(L*W*H) | 2500*3500*1850mm |
Characteristic:
þ3 inch and 6 inch shaftless air pressure cone top unwinding
þLaser paper core positioning technology
þError correction method EPC/LPC（web guide)
þMain control system(PLC+HMI)
þSubsection tension control technology(auto taper control)
þDrive mode(Asynchronous servo motor control)
þFriction shaft(3inch)
Cutting methods(razor cut or round cut)
machine detailed pictures:
|
|

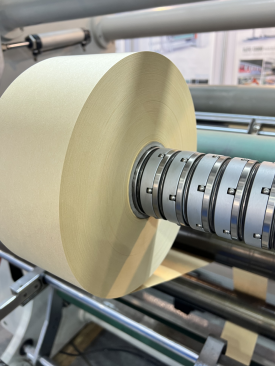

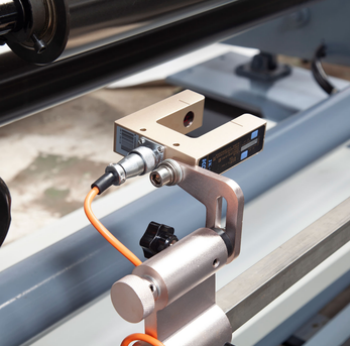

Rewind roll | Web guide |
|
|

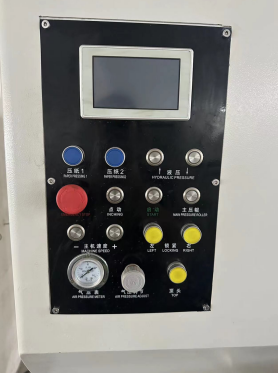

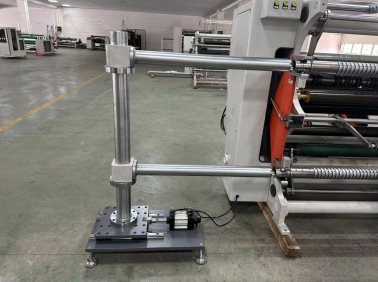

Unload frame | Touch screen |
|
|

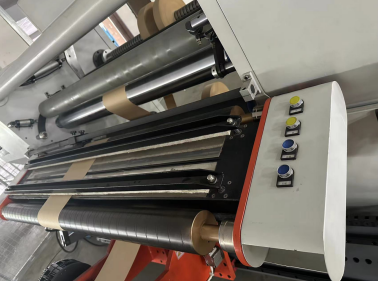

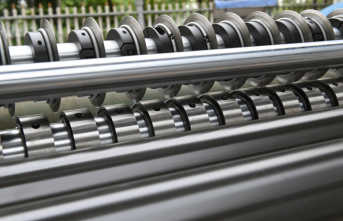

Splice table | Round knife |
