Descriptions

Parameters

Effective cut width

800/1100/1400mm

20-1500mm

Effective cut thickness

30-300gsm

Max mechanical speed

150m/min

Total power

7/9/11KW

Machine weight

3000/3300/3600kg

Machine overall dimensions

4900mm×1900mm×1500mm

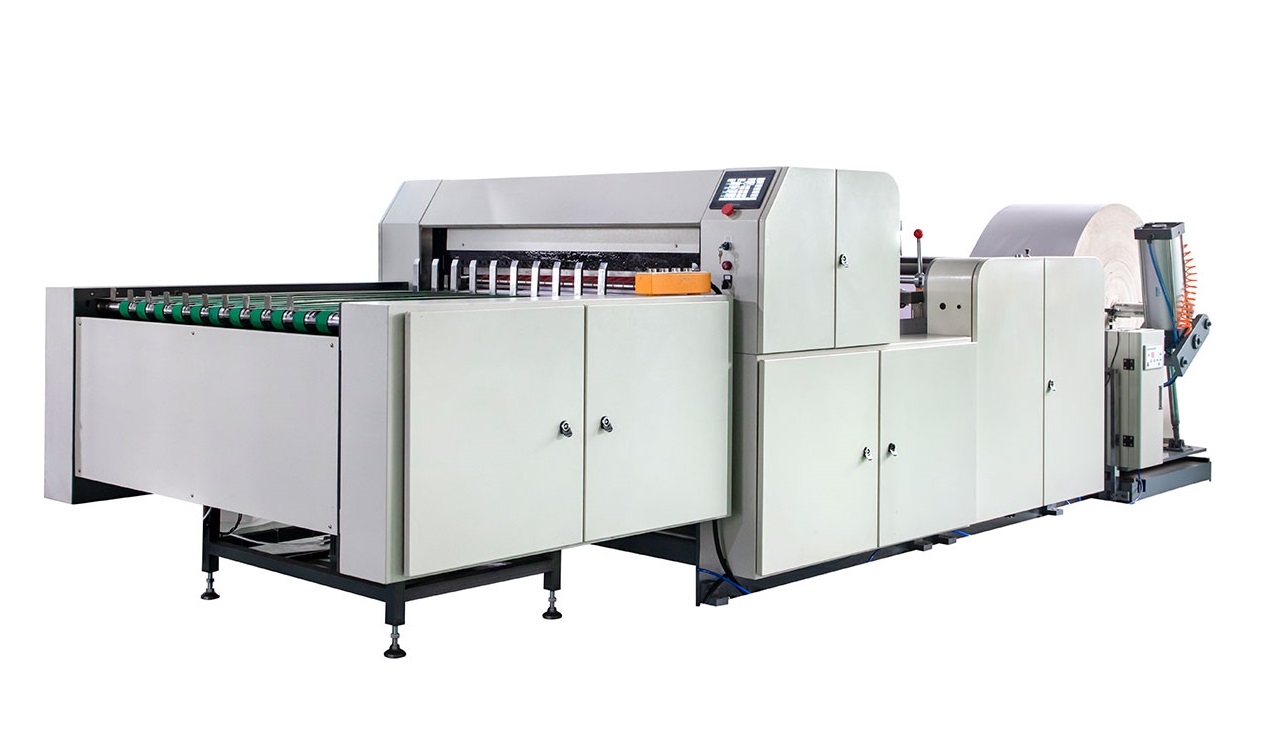

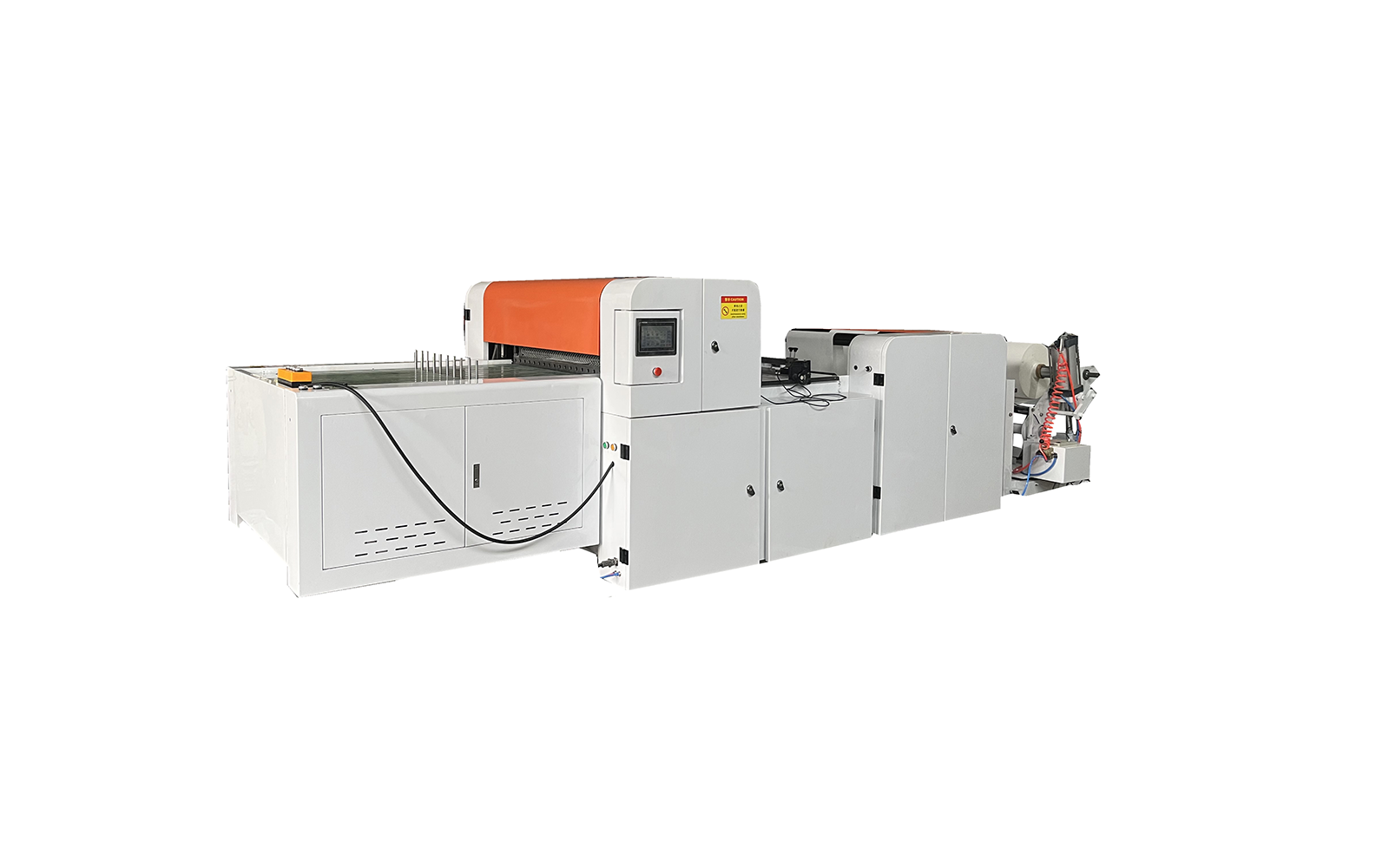

This machine is suitable for the horizontal cutting of roll materials after rejuvenation of reverse osmosis membrane, paper, non -woven plastic printing. have Computer control, DC speed adjustment, automatic fixed -length settings, automatic records, sound and light alarm, Waiting for functions. Static electricity is installed. The whole machine is compact, novel in shape, and high degree of automation. It is a must -have equipment for the printing of roll materials to cut into slices.

Configurations:

1. Main motor: AC motor (one): 1.5kw
2. Feed motor: servo motor: 3.2kw
3. The knife rack is adopted: camshered knife rack (self -produced) with straight  rail guide.
4. Cutting method: cold cutting.
5. Knife: A set of alloy steel A7III.
6. Post -feeding motor 1.5kW (1: 3) deceleration motor.
7. The whole machine structure: iron plate (wall plate).
8. The rubber roller adopts III -type wear -resistant rubber roller (4pcs) diameter of 85mm (self -produced).
9. The whole machine is treated with Dolo Rust -proof .
10. With total 6pcs round slitter knives.
11. The color of the whole machine (white red).
12. The splice table uses a conveyor belt of 1.2 meters.
13. 1 set of pneumatic lifting on the feeding.
14. With automatic web guide controller on unwind.

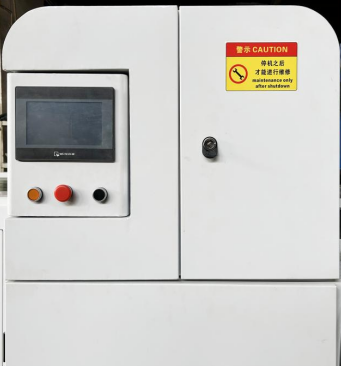

Touch screen

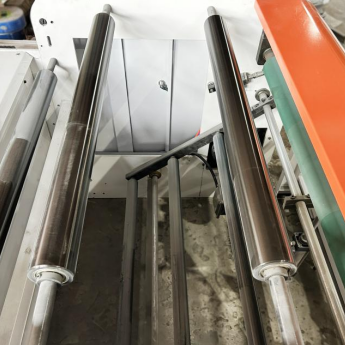

Float roller

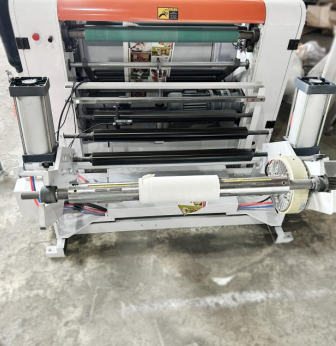

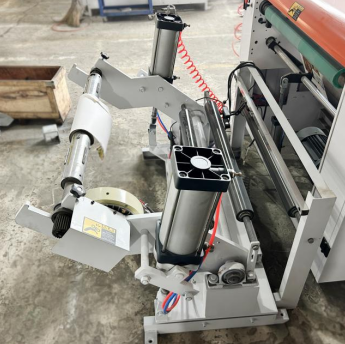

Auto loading unwind

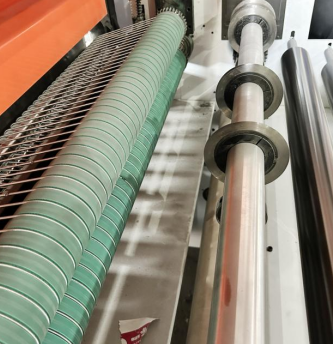

Slitter round knives

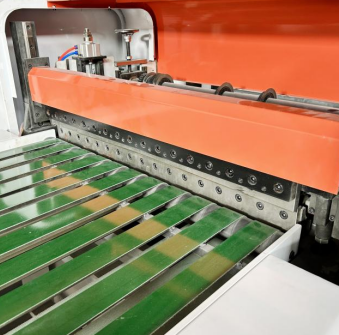

Cross cutter knife

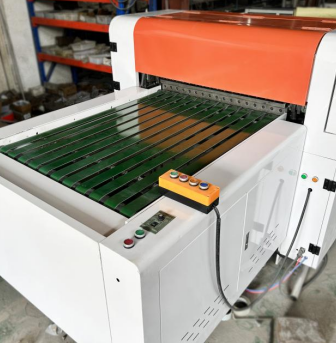

Conveyor belt
