1.Main Technical Parameters:

Description:

1. Host Description:
 1) Frequency converter speed control of the host, PLC touch screen control   system,
 2)Automatic counting, automatic fixed length, alarm stop
 3) The motor adopts three-phase asynchronous frequency converter motor
 4)Actively adopt servo control positioning method
 5)With one pcs 3 inch air shaft for unwinding
 6)Web guide system
 7)The frame adopts 16mm steel plate and groove-shaped rigid structure, the cross-cutting tool holder adopts a heavy-duty casting structure, and the guide roller adopts static balance treatment aluminum alloy guide roller;
 8)The drive positioning traction adopts a servo system. The drive shaft adopts a steel wire structure. The feeding and traction method is that the motor drives the sprocket to drive the traction rubber shaft. The receiving platform is an automatic sorting workbench;

1. Automatic finishing device:
2. Pneumatic lifting stacking table, when the paper is stacked to a   considerable height, it is manually lowered, the length of the receiving table is effectively 1.2
3. The maximum stack height of paper is 1200mm
4. Automatic label insertion device
5. Paper arranging equipment:

A .The front side is for paper arranging with fixed baffle
 B. Both sides are electric vibration flapping the paper
 C.The rear baffle is an adjustable baffle
 5)Electrical control part: (control and host part connected in parallel) The whole machine adopts PLC industrial control system (PCL adopts motion controller; man-machine interface (touch screen) adopts MCGS brand.
 3.Machine Detailed Pictures:

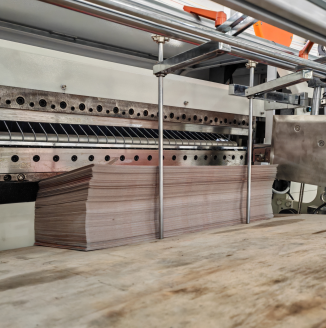

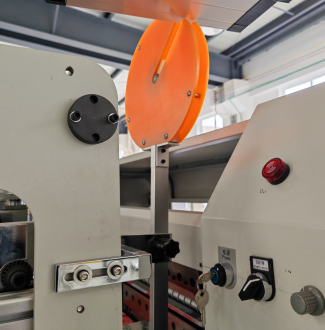

Stacking paper	Number count

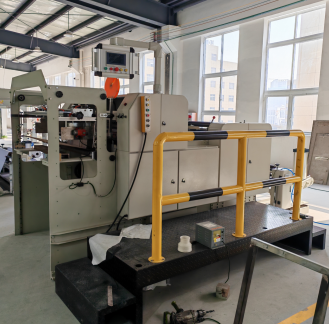

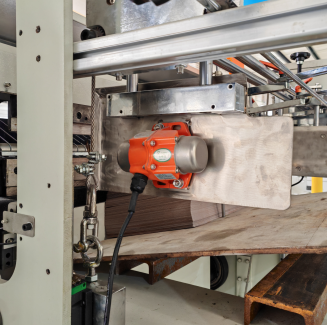

Machine side face	Stacker motor
Cross cutter knife	stacker

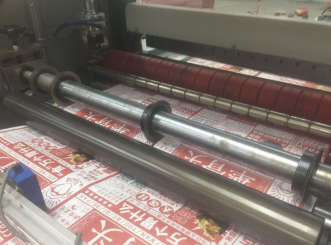

After stacker papers	Slitter knives
