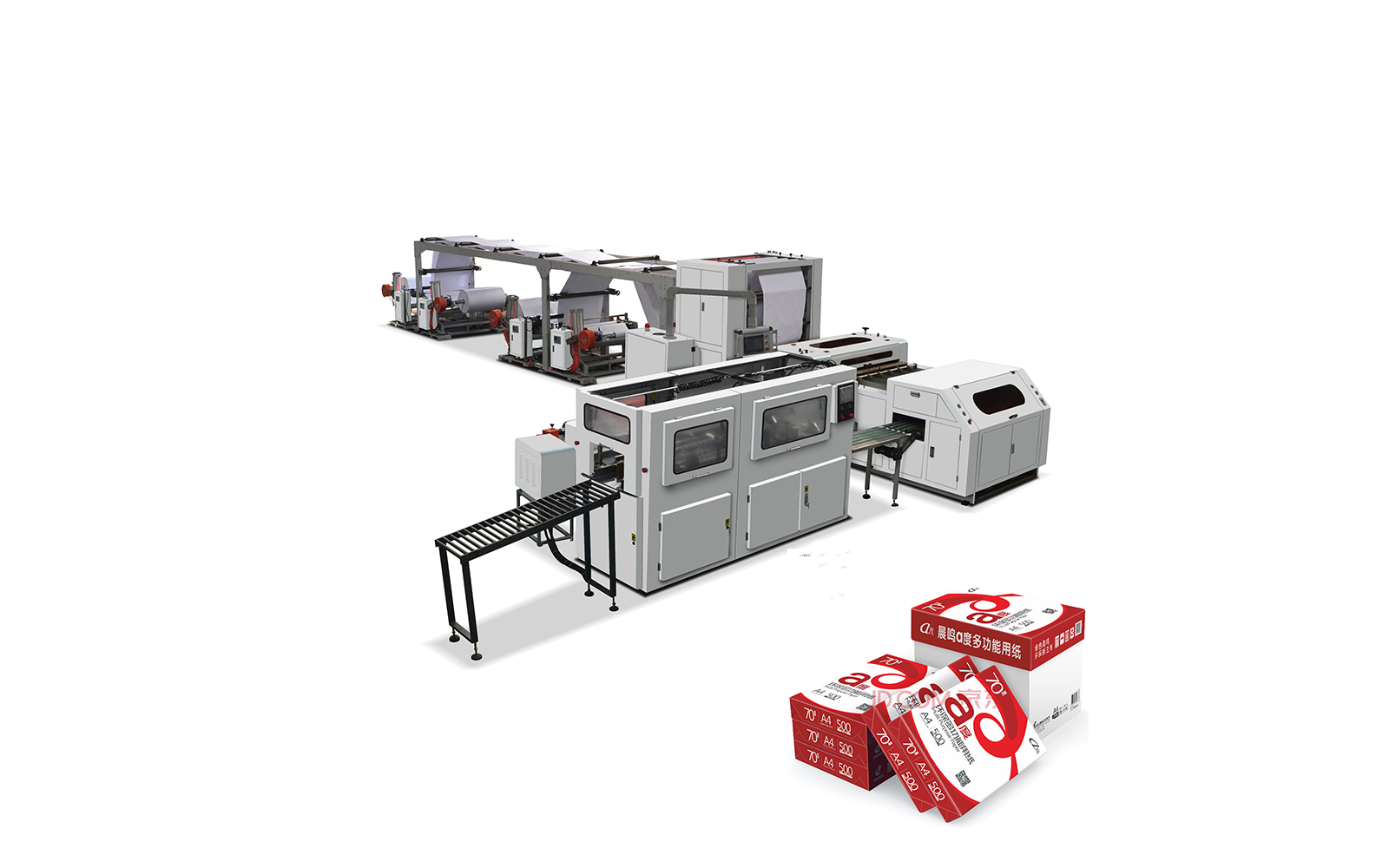

Main Technical Parameters:

Description:

1.  Host frequency conversion speed regulation, PLC touch screen control system, automatic counting, automatic fixed length, alarm stop, automatic control and other functions

2.  The frame adopts a 16mm steel plate structure, the cross-cutting tool holder adopts a heavy casting structure, and the guide roller adopts a dynamic balance treatment aluminum alloy guide roller

3.  The drive positioning traction adopts the servo system drive shaft structure, and the feeding traction method is that the motor drives the sprocket to drive the traction rubber shaft.

4.  This machine is an ideal online cross-cutting equipment, with high precision, fast speed and smooth material collection.

Host part

The frame adopts 16# high-quality steel plate structure

1). Traction device:

(1) Structure type: active traction passive compression type

(2) The traction base adopts casting structure (1 set)

(3) The traction roller adopts rubber roller (specification: 4 φ85×1150mm)

(4) The compression method adopts cylinder control

(5) The driving guide roller adopts aluminum guide roller (specification: 12 φ85×1150mm)

(6) The driving guide roller can be tensioned up and down

(7) The motor adopts a three-phase asynchronous variable frequency motor 1.5KW (Shanghai Dedong) (1 unit)

(8) The frequency converter adopts GETEC 1.5kw (1 unit)

(9) Feeding adopts floating arm mechanism for buffer storage.

(10) Floating up and down tension adopts pneumatic traction method

(11) Floating guide roller: aluminum guide roller (specification: 12 φ52×1150mm)

(12) The entire feeding mechanism is intelligently controlled by the displacement sensor.

Feeding mechanism:

1.  Actively adopt servo control positioning method

2.3kw INVT servo motor, driver (1 set)

3.  The industrial control system of the whole machine adopts the driving mode of the digital industrial control system: the main motor drives the active roller positioning

4.  The transmission adopts synchronous belt and synchronous wheel transmission mechanism

5.  The feed roller adopts a smooth rubber roller structure

6.  The feeding adopts conveyor belt feeding structure, direct feeding 50*3300*1.5=13 lines, motor 0.75KW (1 set) sine frequency converter 0.75KW (1 set)

7.  The horizontal conveyor belt adopts 50*3860*1.5=3 0.75KW (1 set) sine frequency converter 0.75KW (1 set)

8.  The receiving table adopts 0.75KW motor (1 set), conveyor belt 50*2760*1.5=3 pieces of GETEC inverter 0.75KW (1 set)

9.  Send to the sorting area for sorting, sorting by the vibration of the left and right clappers, and the front and rear baffles.

10.  In the process of horizontal delivery to the receiving table

Cutting device

(1) Cutting method: the lower knife is fixed, and the upper knife takes the initiative to cut

(2) The tool holder adopts a heavy casting structure:

(3) Linear guide (2 pairs)

(4) Oil container (2 pcs)

(5) Lubricating oil can be recycled

(6) The upper and lower knives adopt bar knives and imported balanced front steel knives (2 pairs)

(7) Tool (specification thickness × width × length: 55 × 80 × 20mm) (Shanghai joint venture) (6 pairs)

(8) 6 upper round blades (1.5*70*105)

(9) Operation mode: Manually adjust the tool position

(10) The main drive mode: the main motor drive matches the speed changer to drive the eccentric wheel linkage link to reciprocate the cutter

(11) The main motor adopts variable frequency speed regulating motor Shanghai (1.5kw)

(12) The frequency converter adopts sine wave (1.5kw 1 unit)

(13) The transmission adopts a synchronous wheel transmission mechanism

(14) Eccentric wheel (2 sets)

(15) Connecting rod (2 pieces)

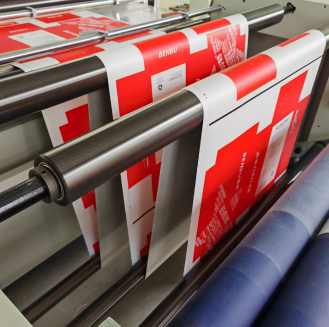

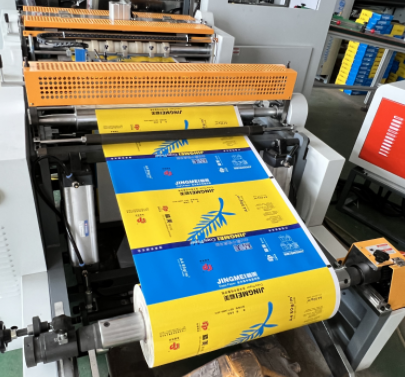

3.Machine Detailed Pictures:

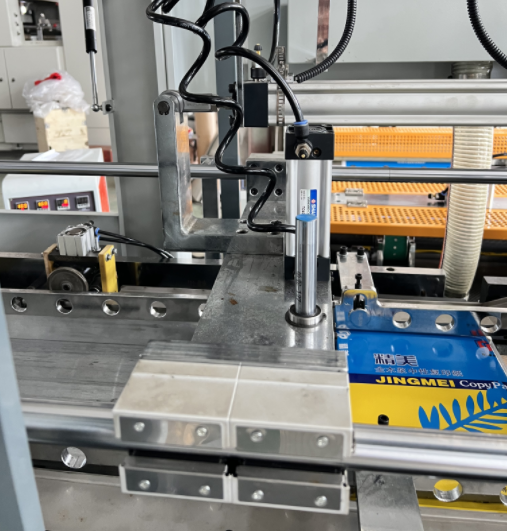

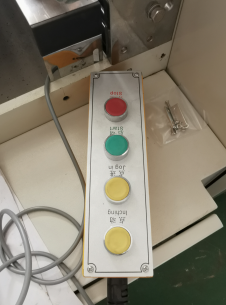

Operate button	Auto stack

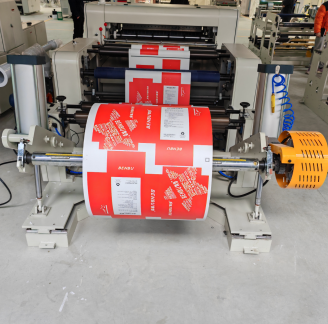

unwind

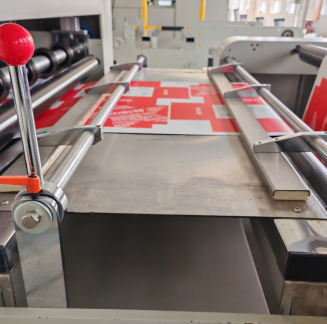

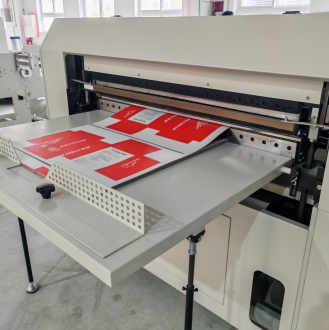

Splice table	Sheet table

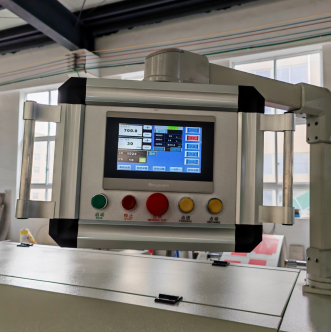

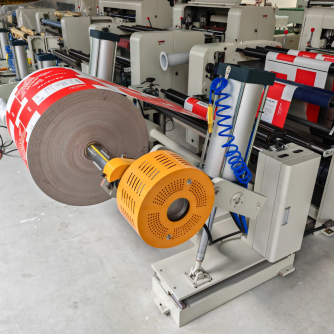

Dance roller	Control panel
