1.Main Technical Parameters:
Max. Cutting width | 600/800/1000/1200/1500mm |
Max. unwinding diameter | Φ1100mm |
Power Supplier | 6kw |
Cutting precision | ±0.2mm |
Baffle thickness | 0.3-4mm |
Length of length | 50-1000mm |
Speed | 10-100times/min |
Overall dimensions(L*W*H) | 400*1000/1200/1400/1600/1900*1500mm |
Power voltage | 380v 3phase 4wire 50hz |
Machine weight | 1200kg |
2.Description:
þFrequency converter speed control of the host, PLC touch screen control system,
þAutomatic counting, automatic fixed length, alarm stop
þThe motor adopts three-phase asynchronous frequency converter motor
þThe frequency converter adopts sine
þActively adopt servo control positioning method
þWith one pcs 3 inch air shaft for unwinding
þWeb guide system
þWith slitting function
3.Machine Detailed Parameters:
 |
|

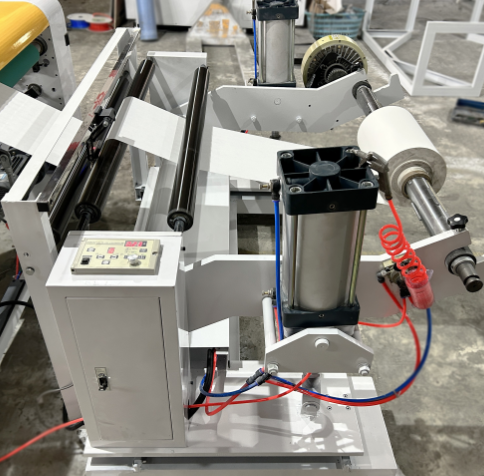

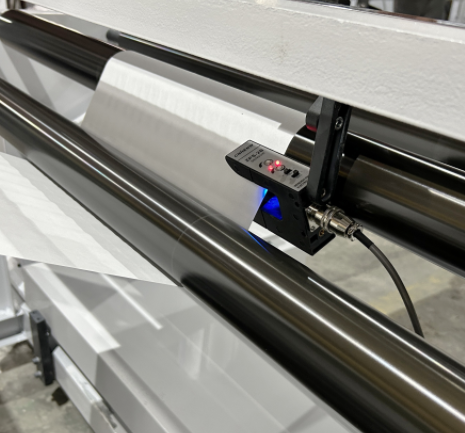

unwind | Web guide |
|
|

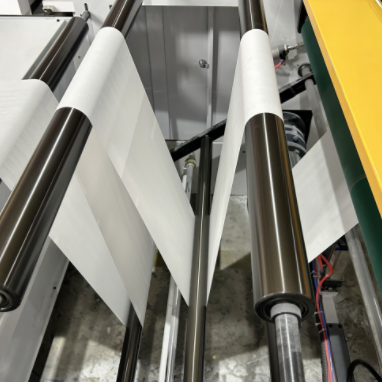

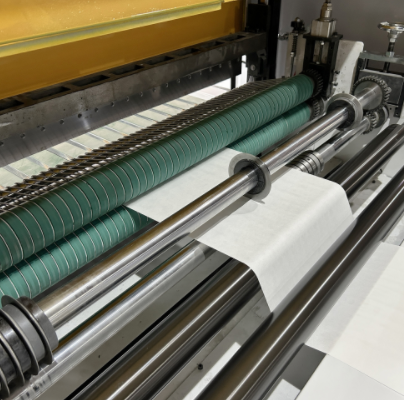

Floating roller | Slitter knives |
|
|

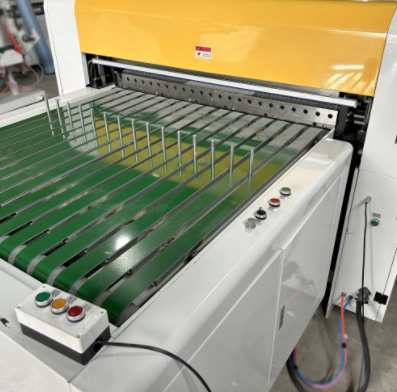

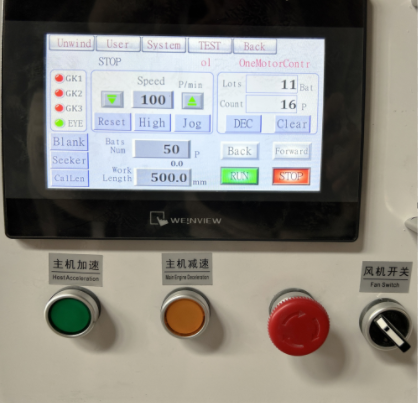

Conveyor belt | Touch screen |
